Manual Transaxle Unit: Components

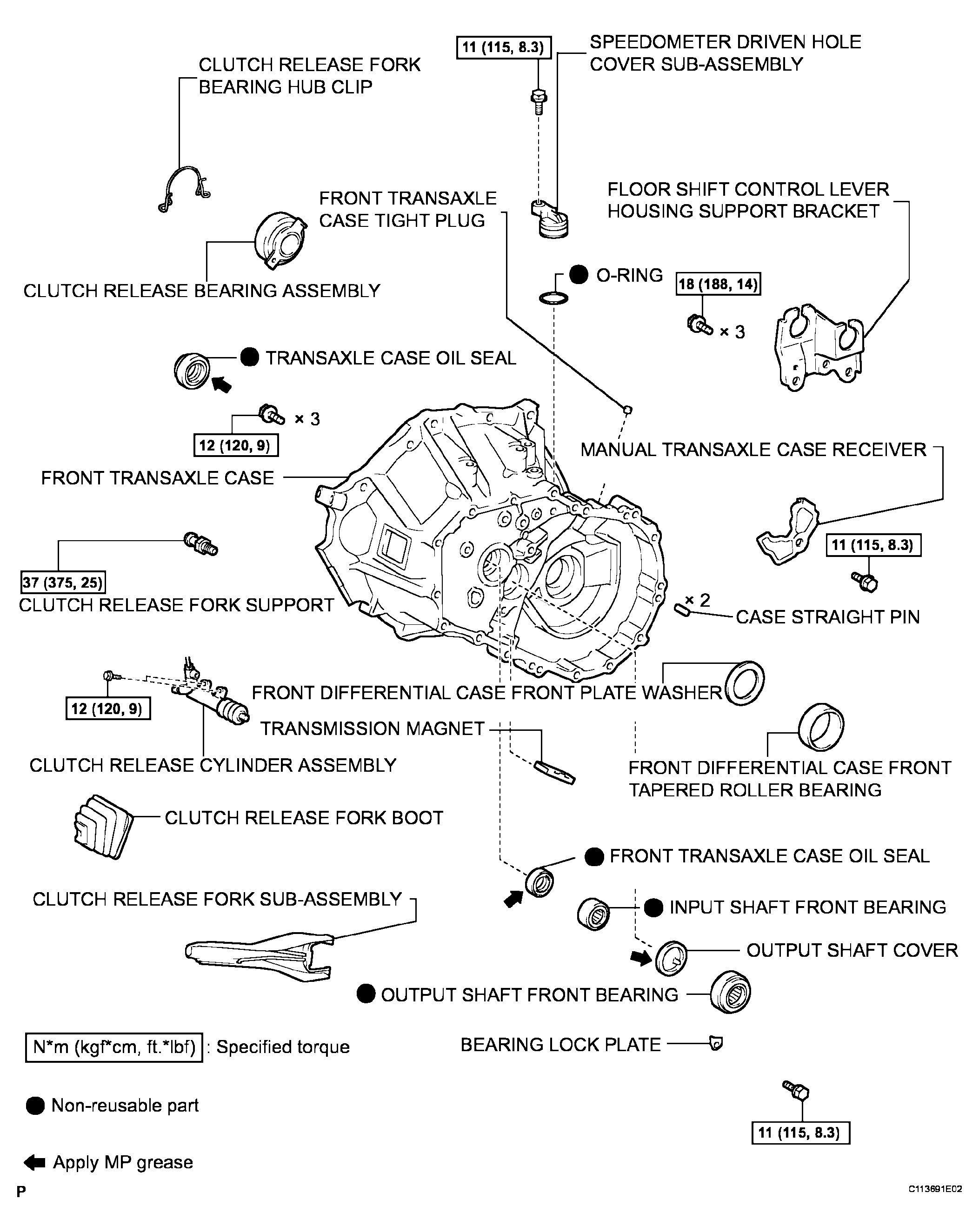

Fig 1: Identifying Manual Transaxle Unit And Components (1 Of 6)
G04228101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

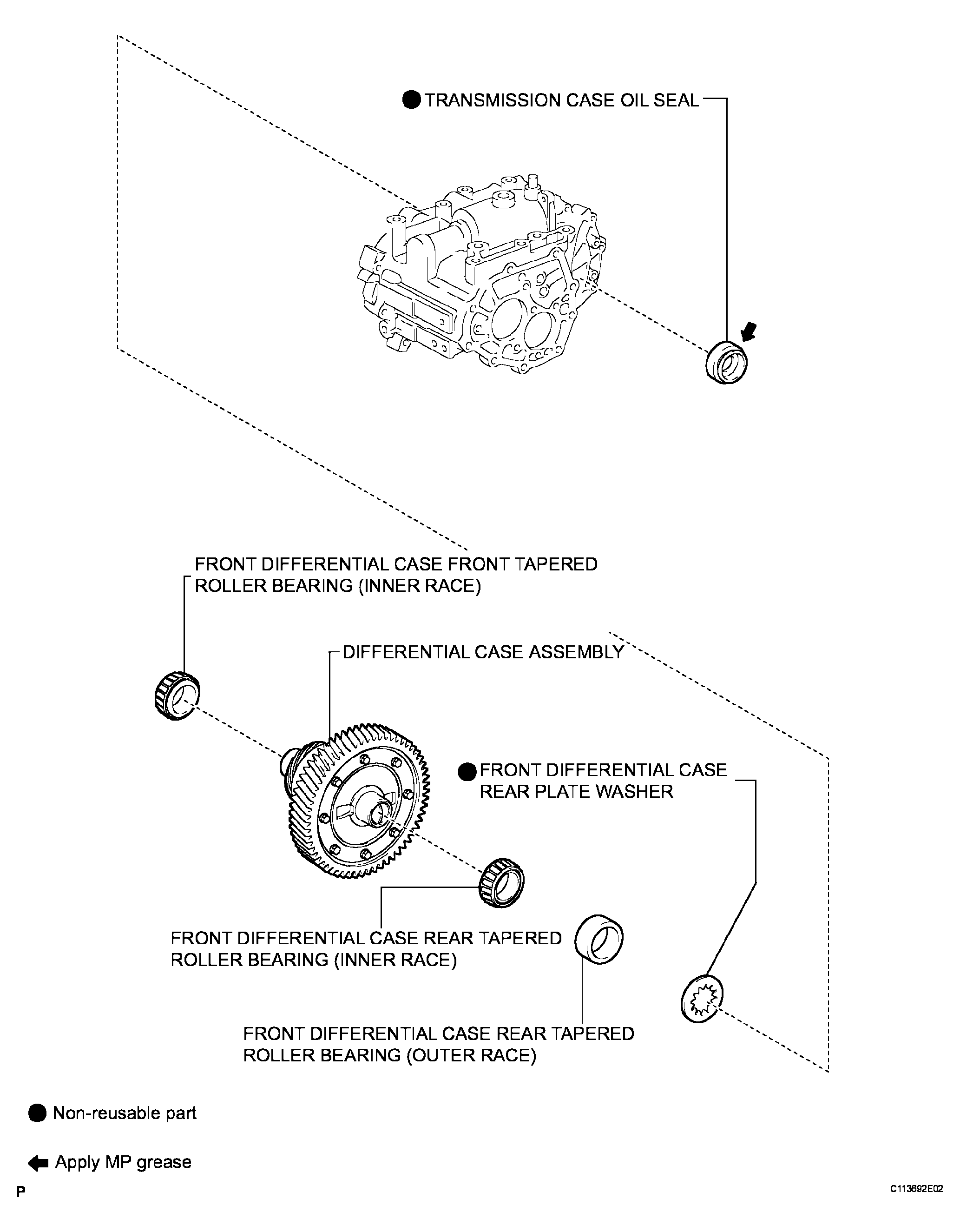

Fig 2: Identifying Manual Transaxle Unit And Components (2 Of 6)
G04228102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

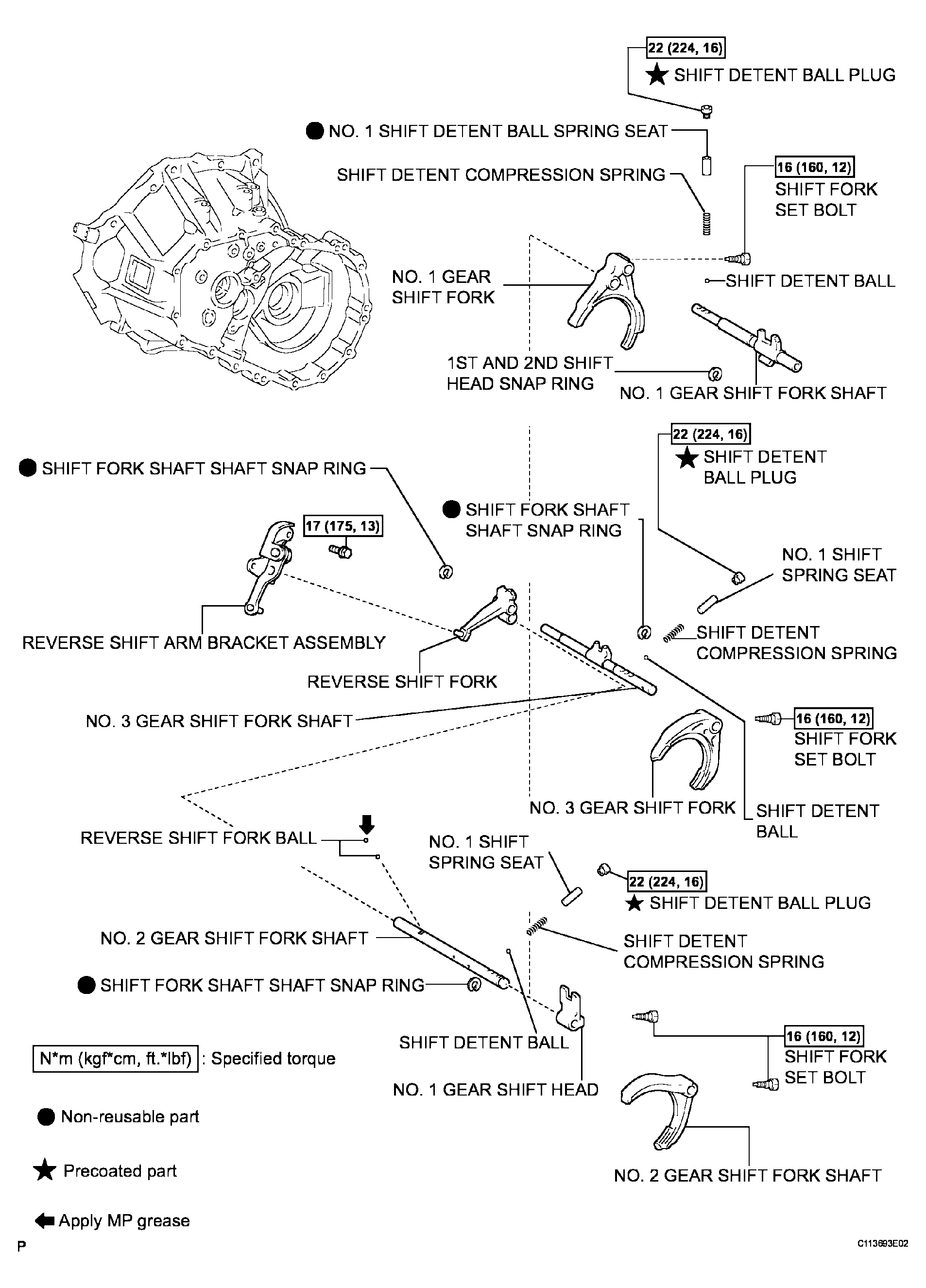

Fig 3: Identifying Manual Transaxle Unit And Components (3 Of 6)
G04228103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

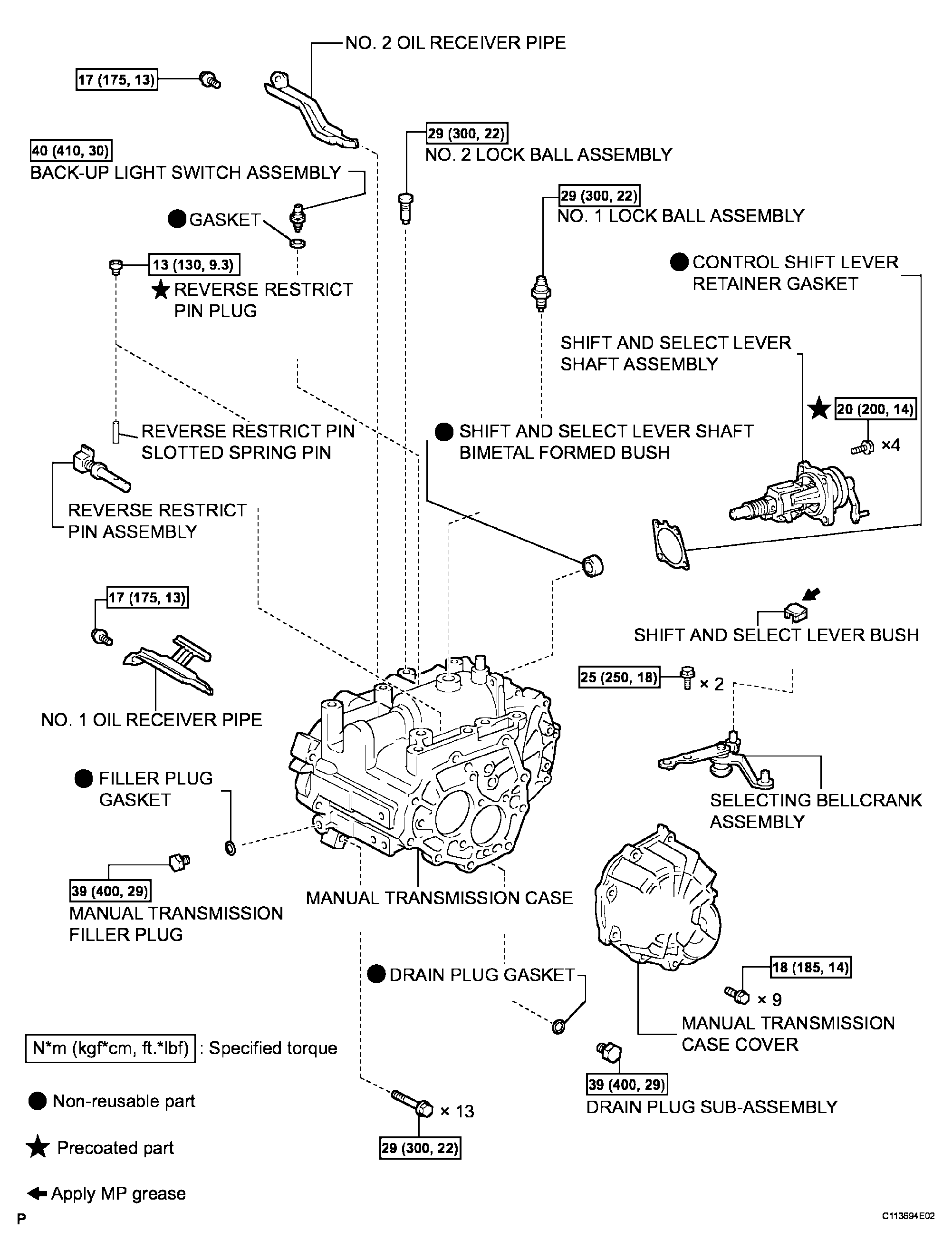

Fig 4: Identifying Manual Transaxle Unit And Components (4 Of 6)
G04228104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

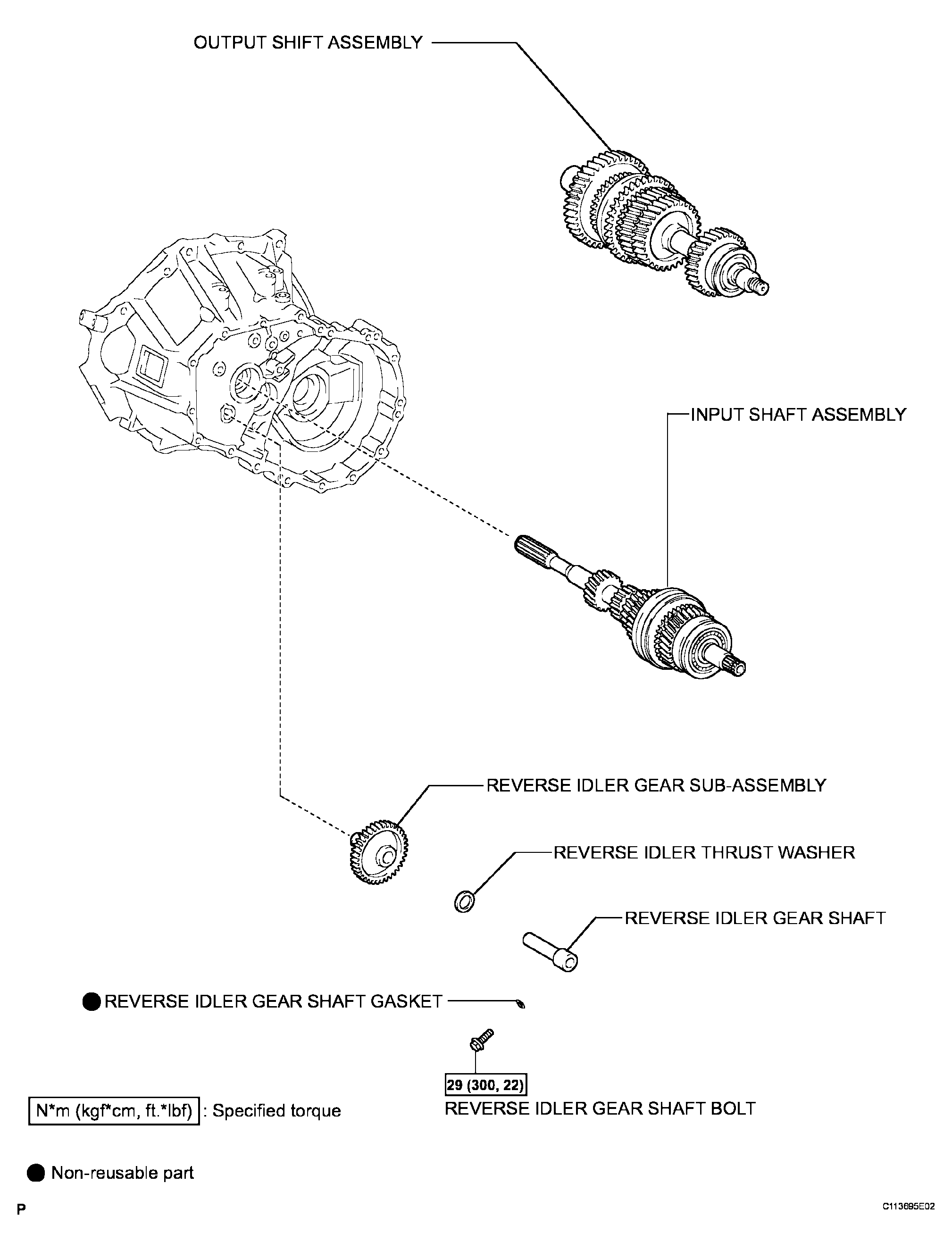

Fig 5: Identifying Manual Transaxle Unit And Components (5 Of 6)
G04228105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

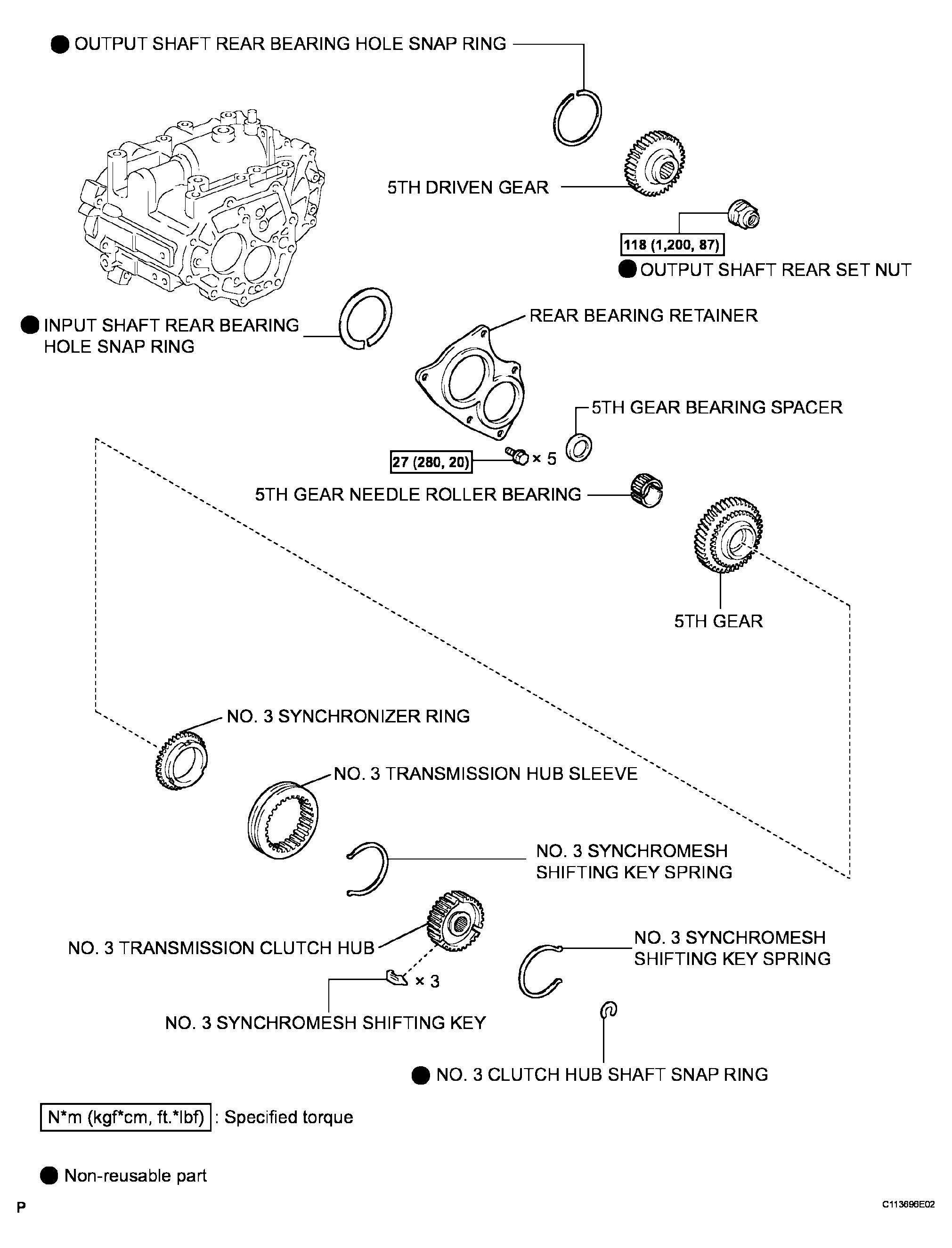

Fig 6: Identifying Manual Transaxle Unit And Components (6 Of 6)
G04228106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
