Inspection Procedure

1. Choose the diagnosis method.
   DTC CHART



   Method	Proceed to
   Using intelligent tester	A
   Not using intelligent tester	B

B: Go to step   3

A: GO TO NEXT STEP

1. Connect the intelligent tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. According to the display on the tester, read the "DATA LIST".
   Fig 1: Checking Ignition Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   DATA LIST



   Item	Measurement Item / Display (Range)	Normal Condition	Diagnostic Note
   MAIN SW (MAIN)	Main SW signal (Main CPU) ON or OFF	ON: Main SW ON (Pushed on) OFF: Main SW OFF (Pushed off)	-
   MAIN SW (SUB)	Main SW signal (Sub CPU) ON or OFF	ON: Main SW ON (Pushed on) OFF: Main SW OFF (Pushed off)	-
   CANCEL SW	CANCEL SW signal ON or OFF	ON: CANCEL SW ON OFF: CANCEL SW OFF	-
   SET / COAST SW	SET/- SW signal ON or OFF	ON: SET/- SW ON OFF: SET/- SW OFF	-
   RES/ACC SW	RES/+ SW signal ON or OFF	ON: RES/+ SW ON OFF: RES/+ SW OFF	-

   OK: When the cruise control main switch is operated, the display changes as shown above.

   Result

   RESULT REFERENCE



   Result	Proceed to
   OK	A
   NG (All items are detective.)	B
   NG (One to four items are defective.)	C

A: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

C: REPLACE CRUISE CONTROL MAIN SWITCH ASSEMBLY

B: GO TO NEXT STEP

1. Disconnect the cruise control main switch connector.

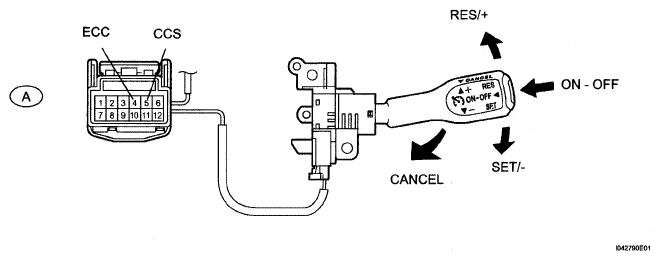

   Fig 2: Inspecting Cruise Control Main Switch Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   CRUISE CONTROL MAIN SWITCH ASSEMBLY STANDARD RESISTANCE SPECIFICATIONS



   Tester Connection	Condition	Specified Condition
   4-5	Neutral	10 kΩ or higher
   4-5	RES/+	210 to 270 Ω
   4-5	SET/-	560 to 700 Ω
   4-5	CANCEL	1,380 to 1,700 Ω
   4-5	Main switch OFF	10 kΩ or higher
   4-5	Main switch ON	Below 1 Ω

NG: REPLACE CRUISE CONTROL MAIN SWITCH ASSEMBLY

OK: GO TO NEXT STEP

1. Disconnect the S7 spiral cable connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   SPIRAL CABLE SUB-ASSEMBLY STANDARD RESISTANCE SPECIFICATIONS



   Tester Connection	Condition	Specified Condition
   A-4 - S7-4	Always	Below 1 Ω
   A-5 - S7-5	Always	Below 1 Ω

NG: REPLACE SPIRAL CABLE SUB-ASSEMBLY

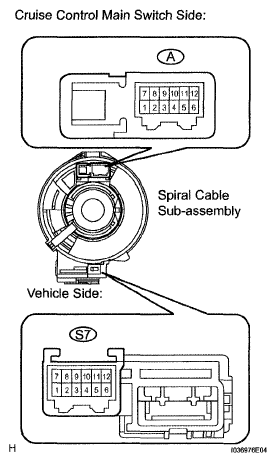

Fig 3: Identifying S7 Spiral Cable Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: GO TO NEXT STEP

1. Disconnect the E5 connector from the ECM.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   WIRE HARNESS STANDARD RESISTANCE SPECIFICATIONS



   Tester Connection	Connection	Specified Condition
   S7-5 - E5-31 (CCS)	Always	Below 1 Ω
   E5-31 (CCS) - Body ground	Always	10 kΩ or higher
   S7-4 - Body ground	Always	Below 1 Ω

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

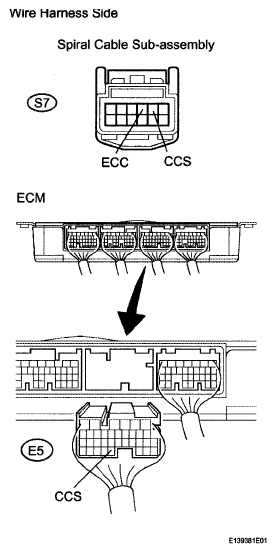

Fig 4: Disconnecting E5 Connector From ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPAIR OR REPLACE HARNESS AND CONNECTOR
