Unlock Warning Switch: Components

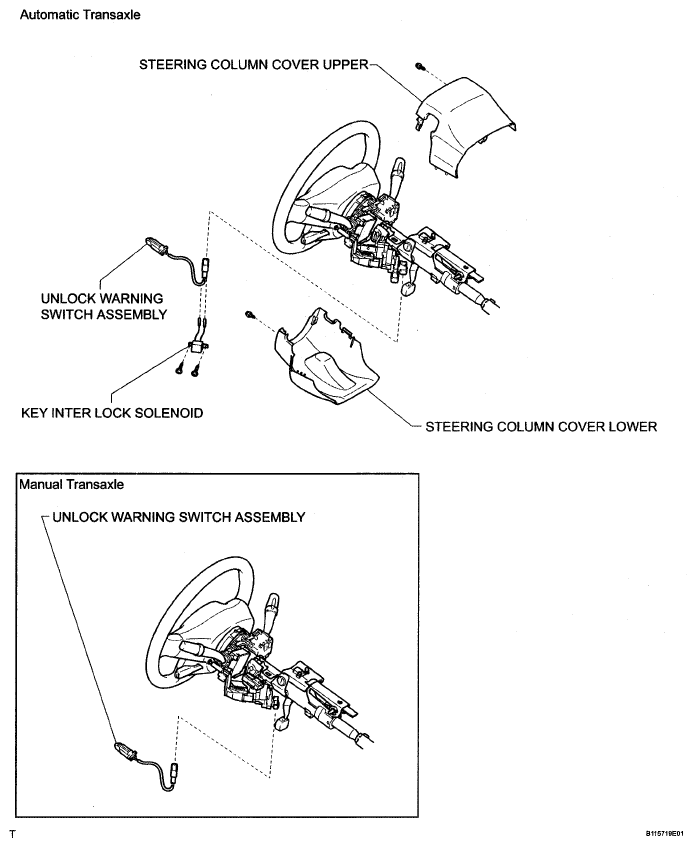

Fig 1: Identifying Unlock Warning Switch Components
G04866991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
