Cooling System (Mechanical): Cooling: Radiator: Components

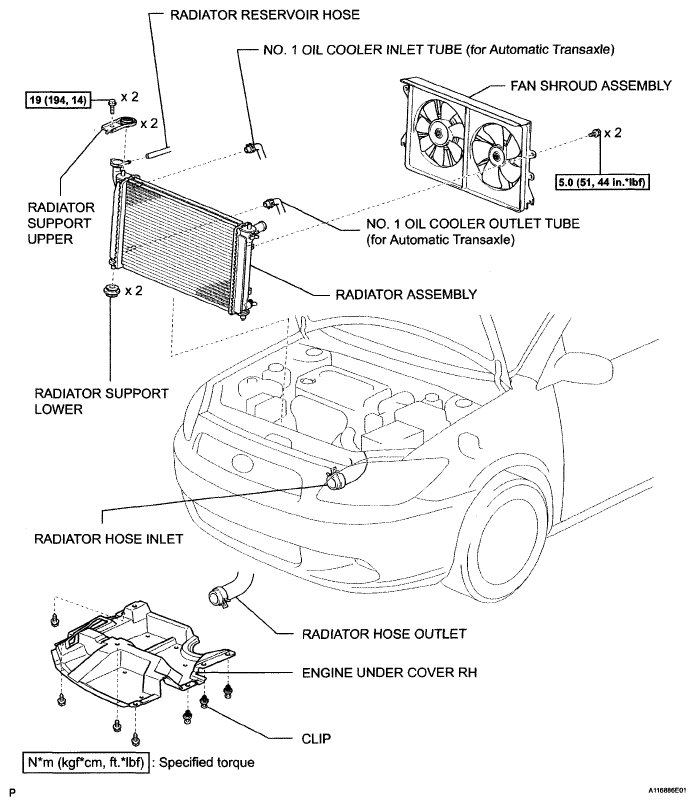

Fig 1: Identifying Radiator Components Location With Specification (1 Of 2)
G04865878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

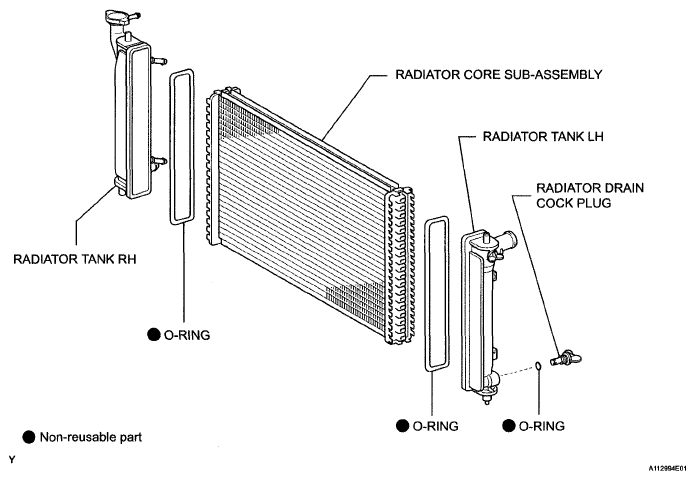

Fig 2: Identifying Radiator Components Location With Specification (2 Of 2)
G04865879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
