Fuel Tank: Components

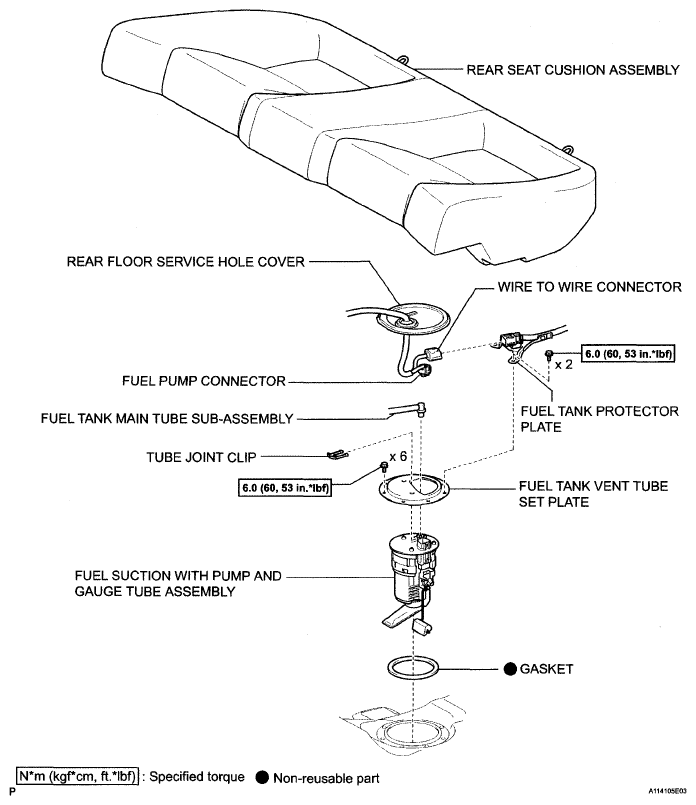

Fig 1: Identifying Fuel Tank Components Locations With Specifications (1 Of 3)
G04865748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Fuel Tank Components Locations With Specifications (2 Of 3)
G04865749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

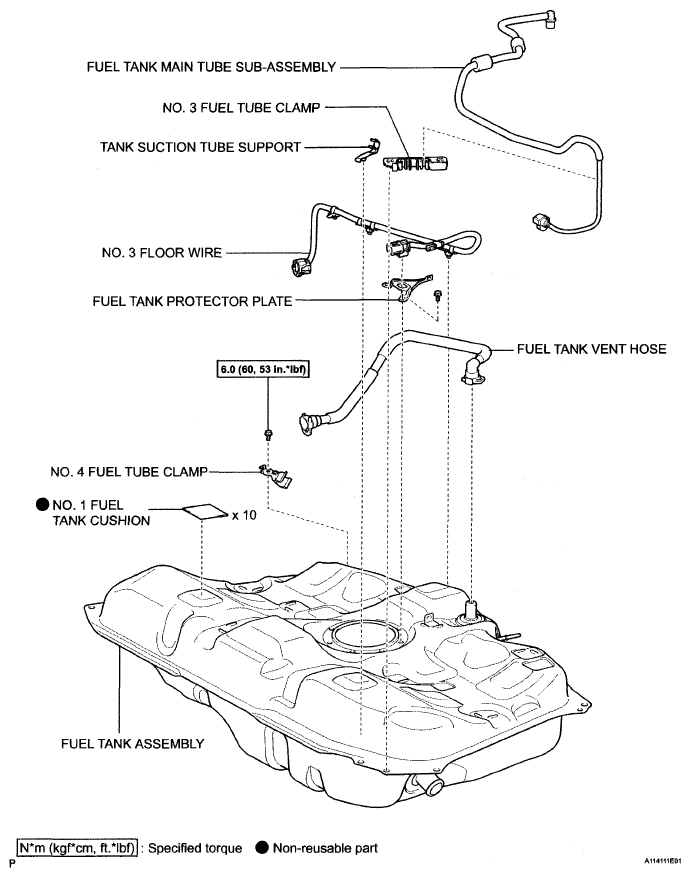

Fig 3: Identifying Fuel Tank Components Locations With Specifications (3 Of 3)
G04865750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
