Input Shaft: Components

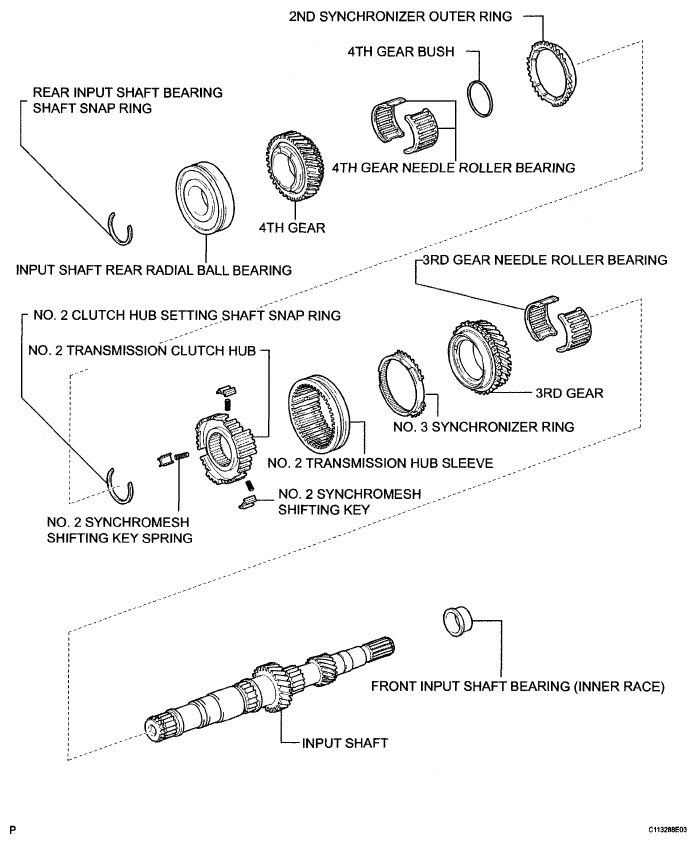

Fig 1: Identifying Input Shaft Components Location
G04868119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
