Manual Transaxle Assembly: Components

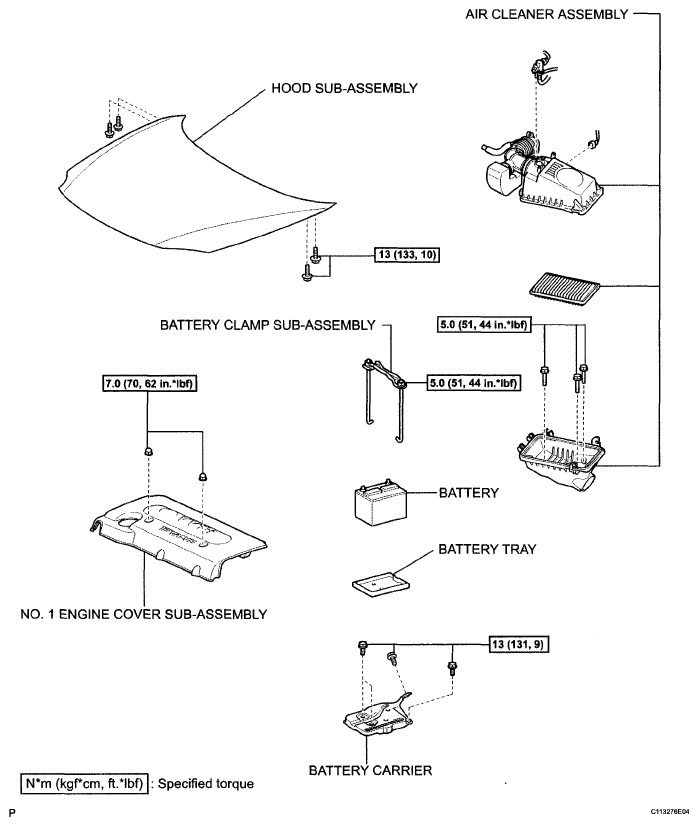

Fig 1: Identifying Manual Transaxle Assembly Components Location With Specifications (1 Of 5)
G04867923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

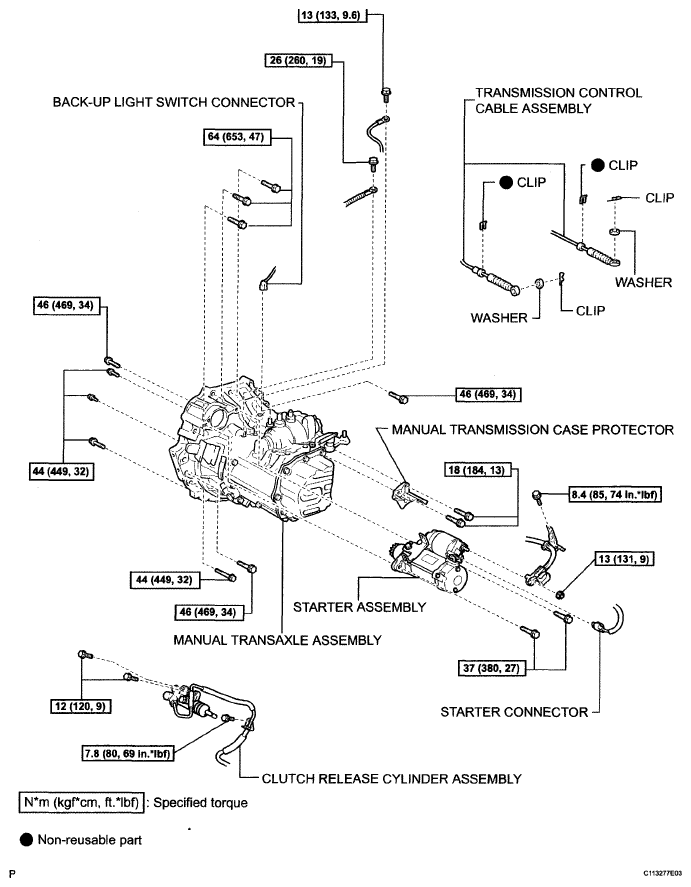

Fig 2: Identifying Manual Transaxle Assembly Components Location With Specifications (2 Of 5)
G04867924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

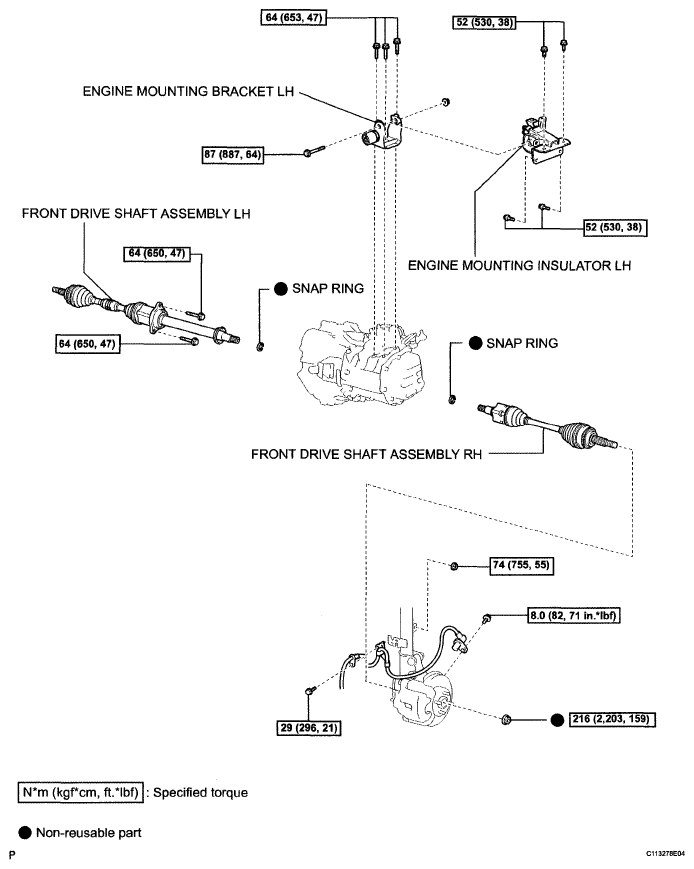

Fig 3: Identifying Manual Transaxle Assembly Components Location With Specifications (3 Of 5)
G04867925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

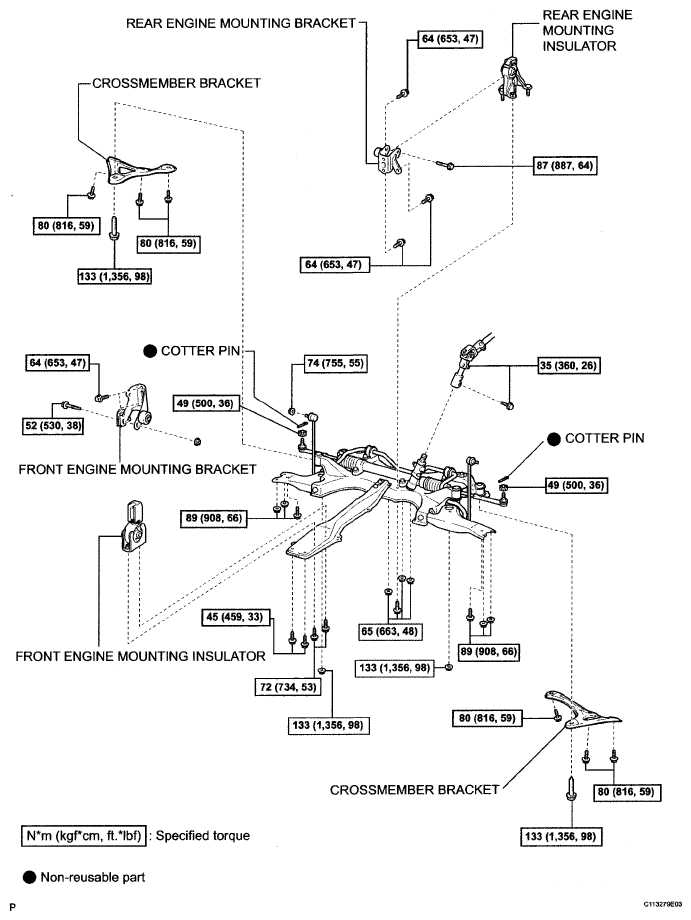

Fig 4: Identifying Manual Transaxle Assembly Components Location With Specifications (4 Of 5)
G04867926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Identifying Manual Transaxle Assembly Components Location With Specifications (5 Of 5)
G04867927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
