Manual Transaxle Unit: Components

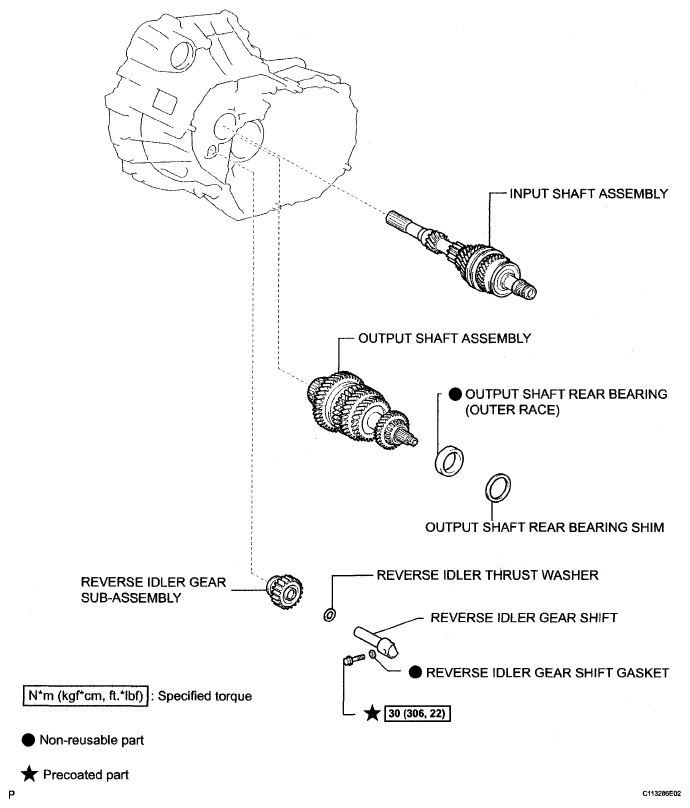

Fig 1: Identifying Manual Transaxle Unit Components With Specifications (1 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

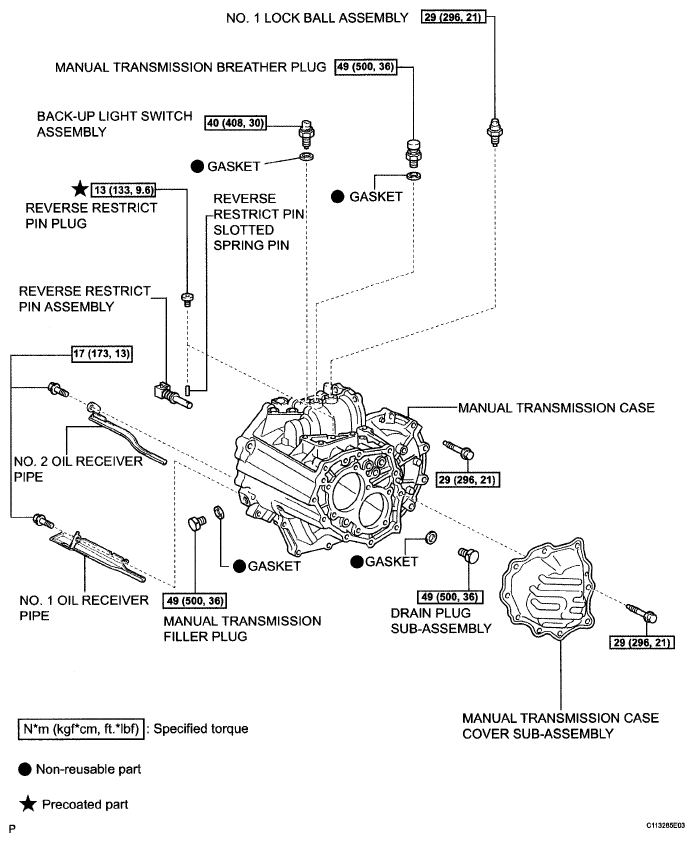

Fig 2: Identifying Manual Transaxle Unit Components With Specifications (2 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

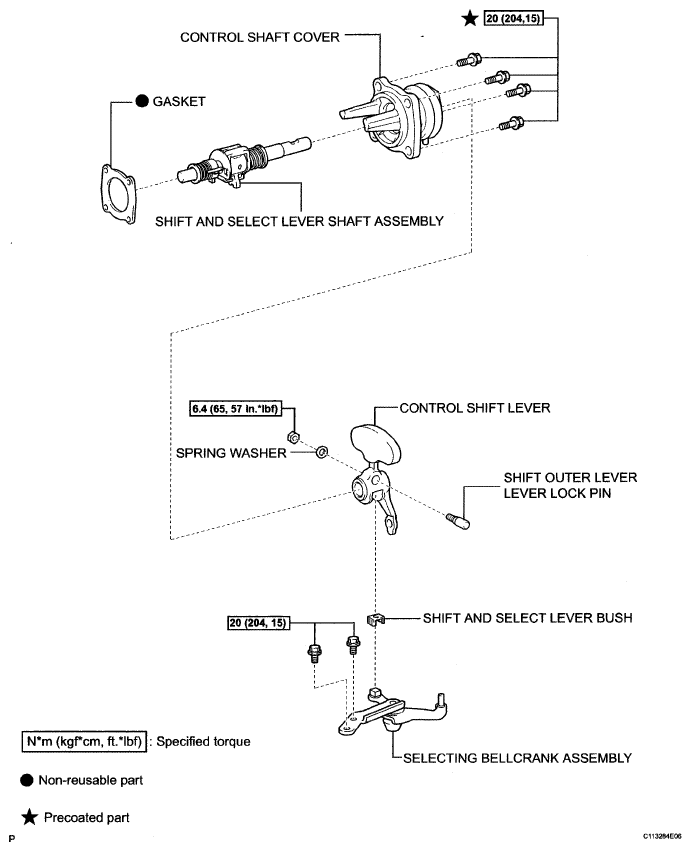

Fig 3: Identifying Manual Transaxle Unit Components With Specifications (3 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

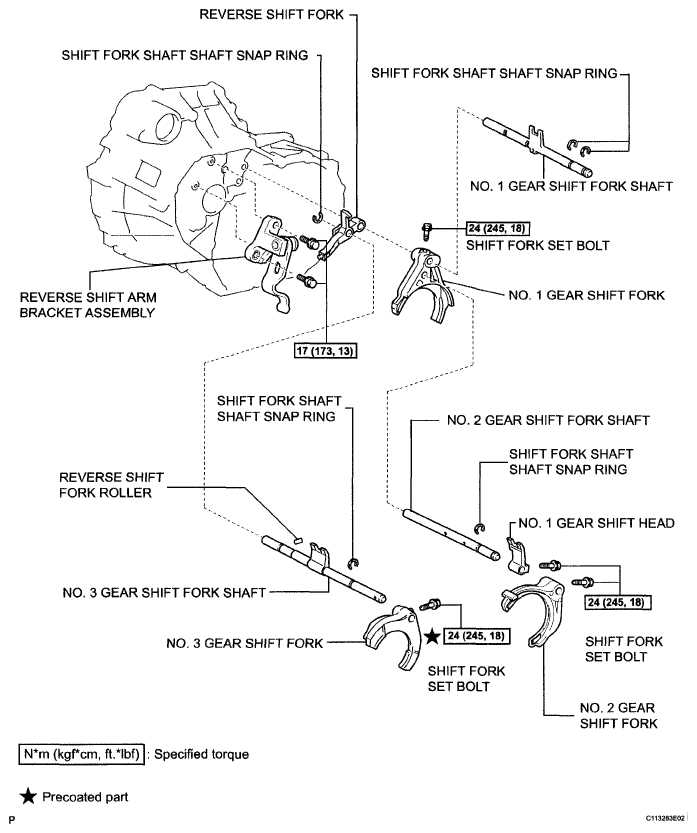

Fig 4: Identifying Manual Transaxle Unit Components With Specifications (4 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

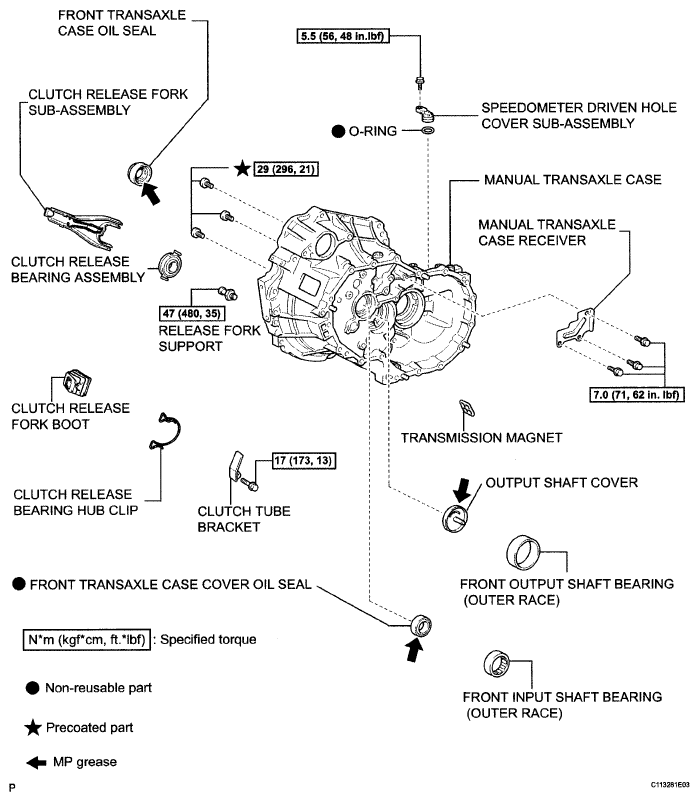

Fig 5: Identifying Manual Transaxle Unit Components With Specifications (5 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

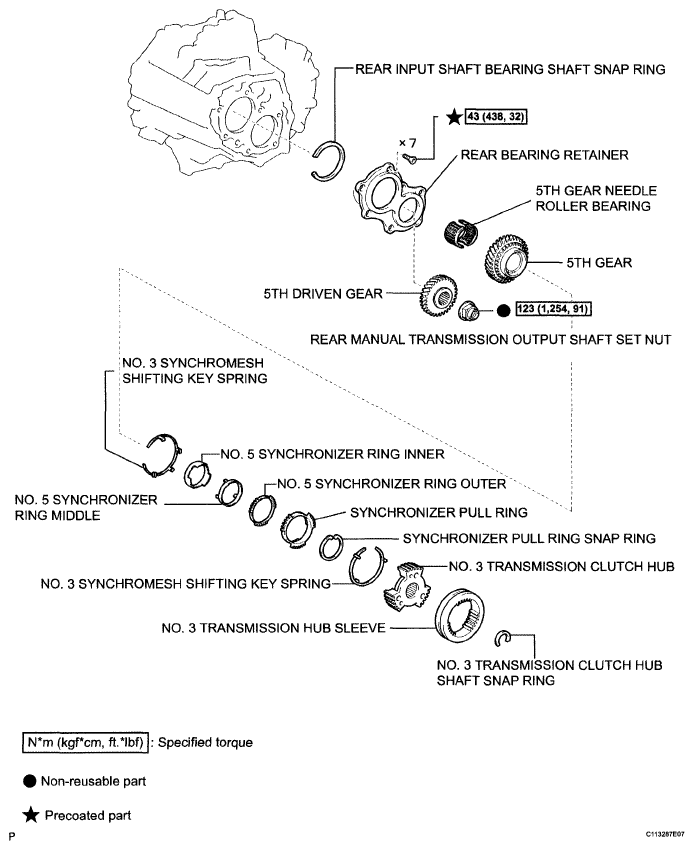

Fig 6: Identifying Manual Transaxle Unit Components With Specifications (6 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

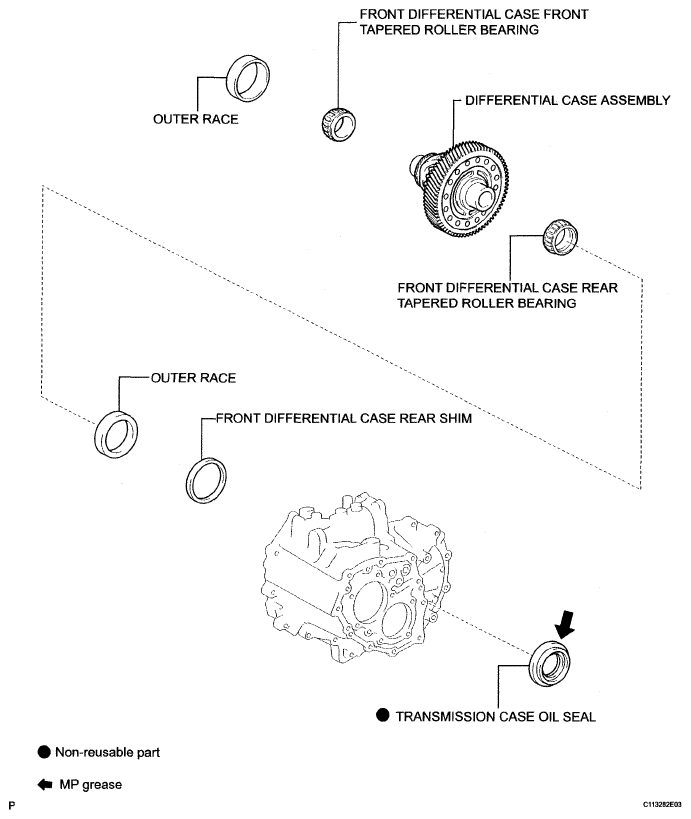

Fig 7: Identifying Manual Transaxle Unit Components With Specifications (7 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
