Output Shaft: Components

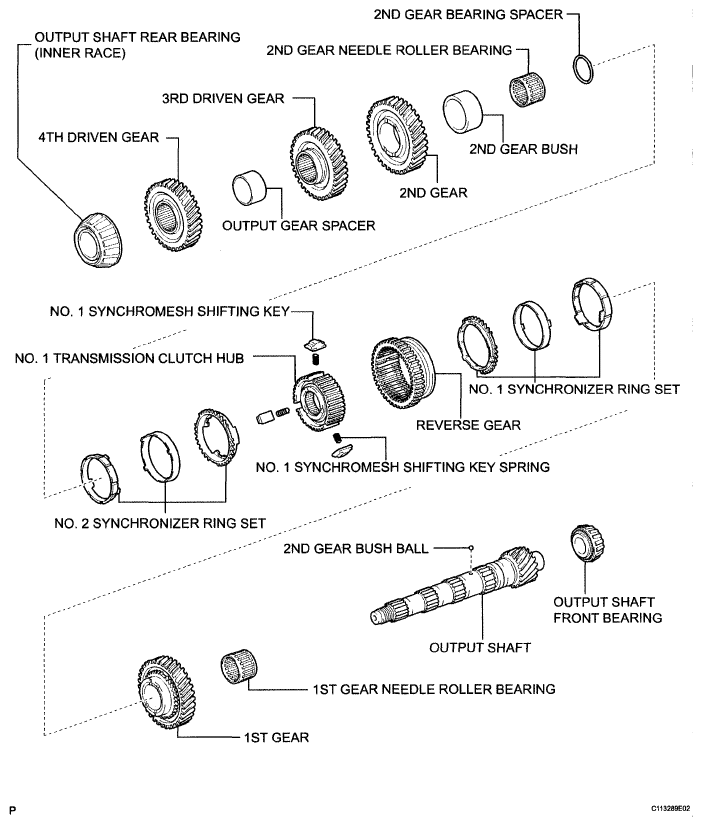

Fig 1: Identifying Output Shaft Components Location
G04868162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
