Lower Instrument Panel: Components

Fig 1: Identifying Lower Instrument Panel Components With Specification (1 Of 3)
G04867455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

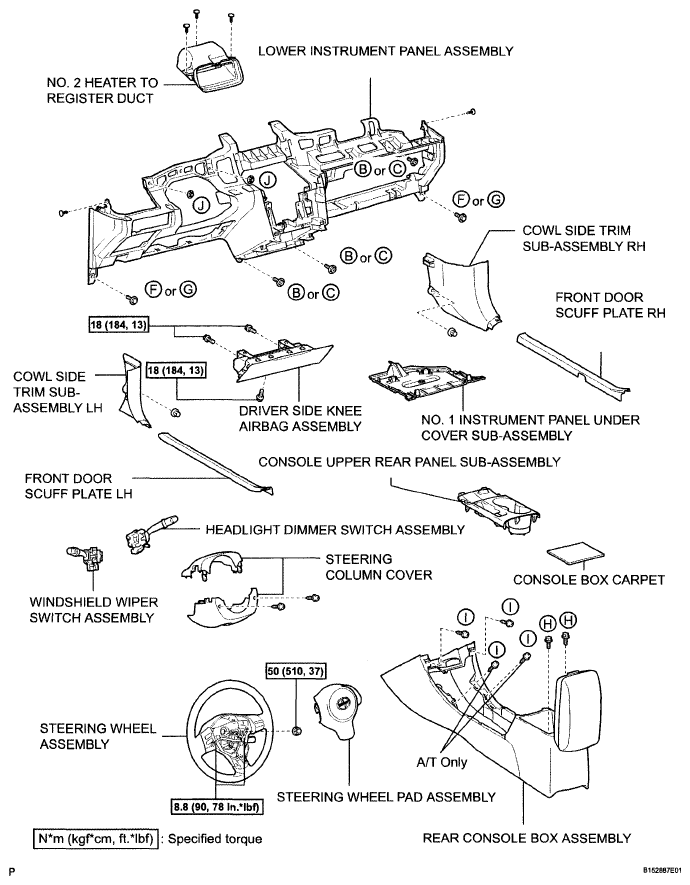

Fig 2: Identifying Lower Instrument Panel Components (2 Of 3)
G04867484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

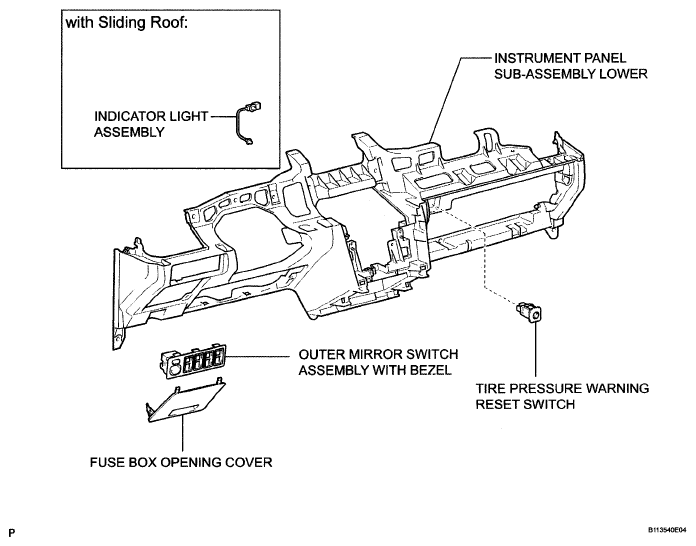

Fig 3: Identifying Lower Instrument Panel Components (3 Of 3)
G04867485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
