Upper Instrument Panel: Components

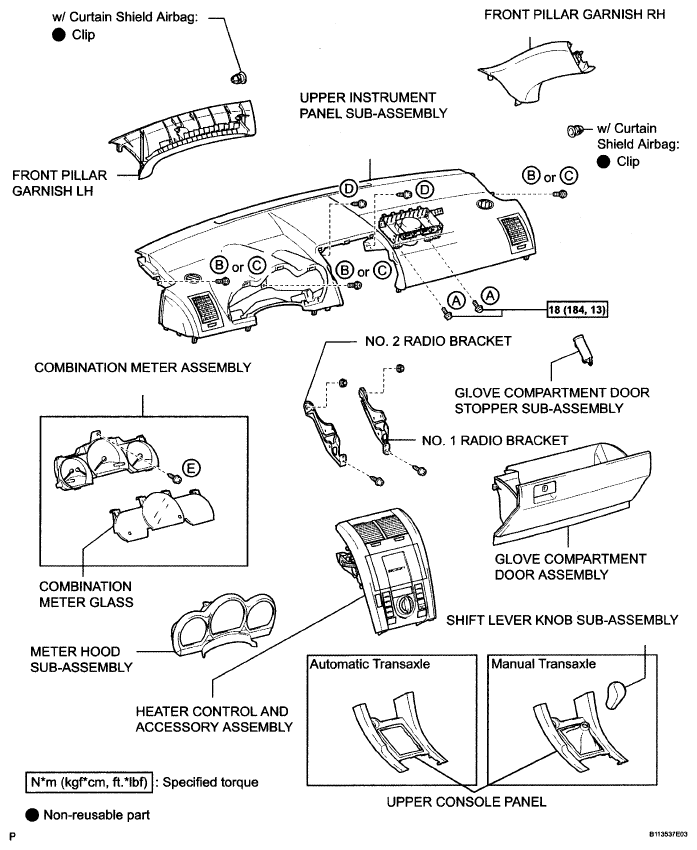

Fig 1: Identifying Upper Instrument Panel Components With Specification (1 Of 2)
G04867455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

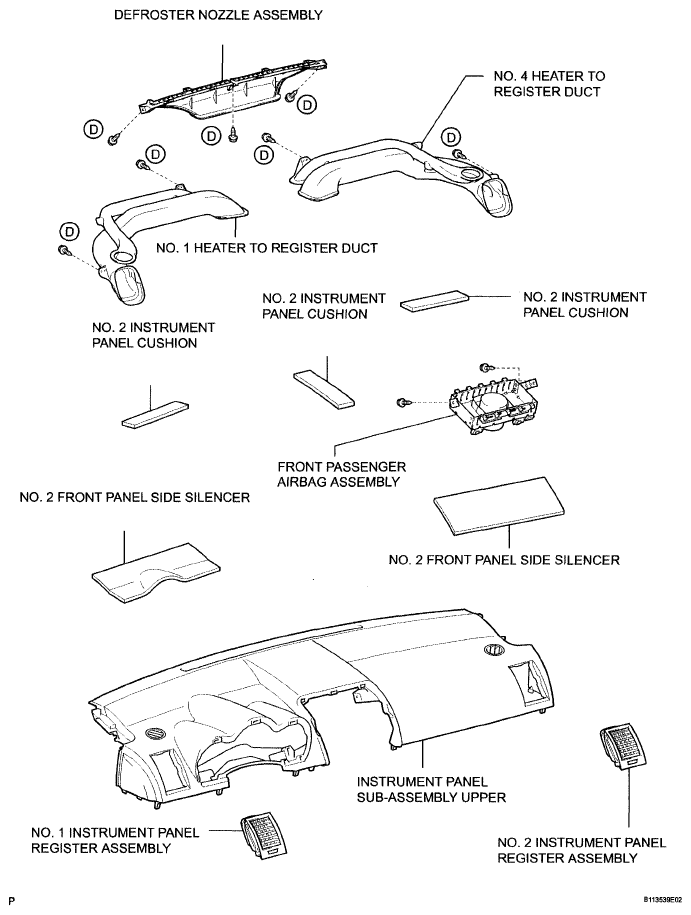

Fig 2: Identifying Upper Instrument Panel Components (2 Of 2)
G04867456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
