Radiator Fan and Condenser Fan: Notes

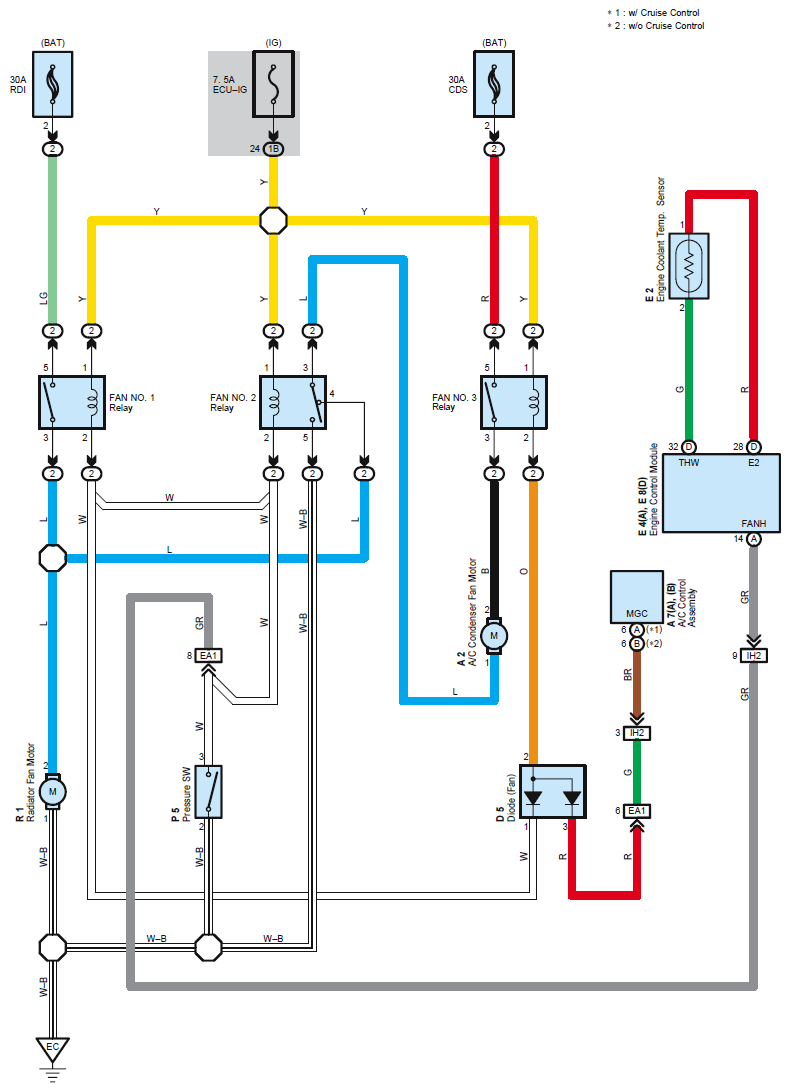

Fig 1: Radiator Fan And Condenser Fan - Circuit Diagram
G07603227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
