Cruise Control: Notes

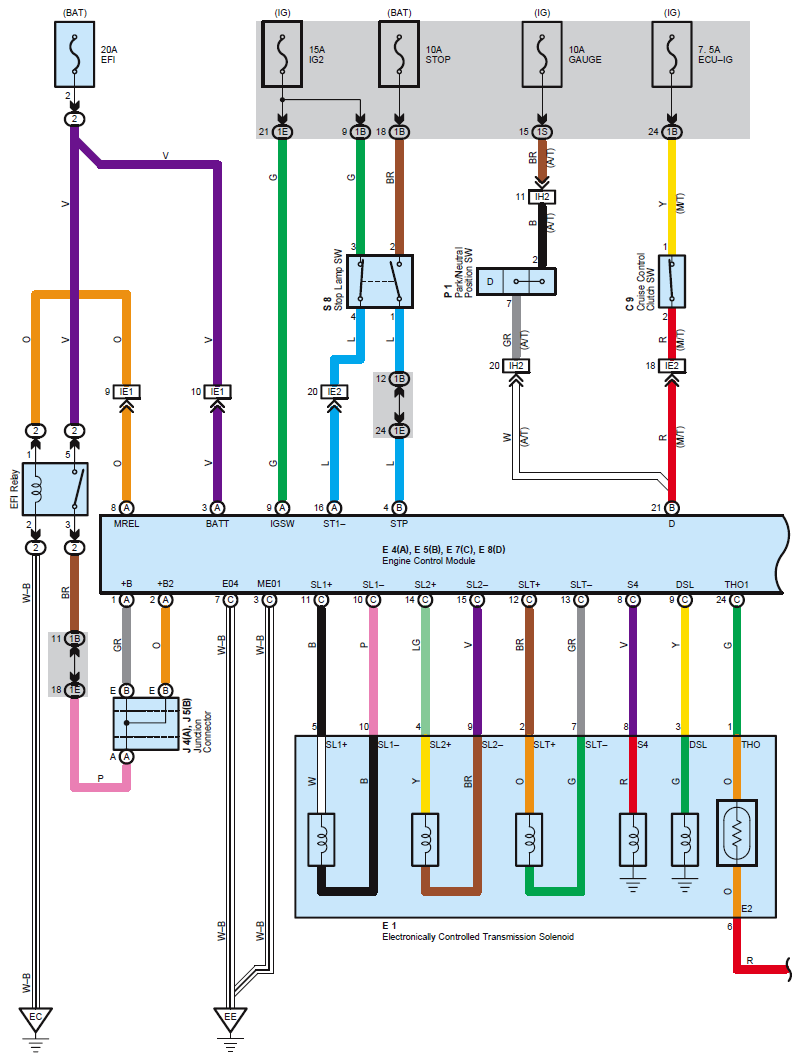

Fig 1: Cruise Control - Circuit Diagram (1 Of 3)
G07603198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

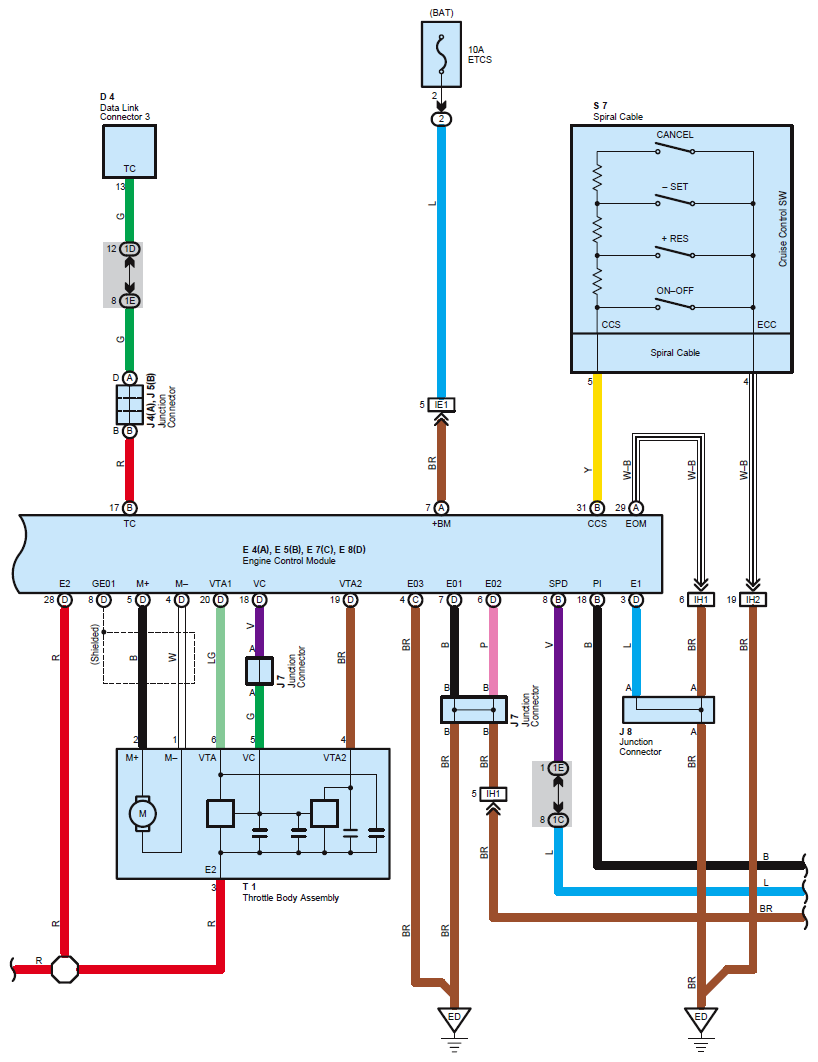

Fig 2: Cruise Control - Circuit Diagram (2 Of 3)
G07603199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

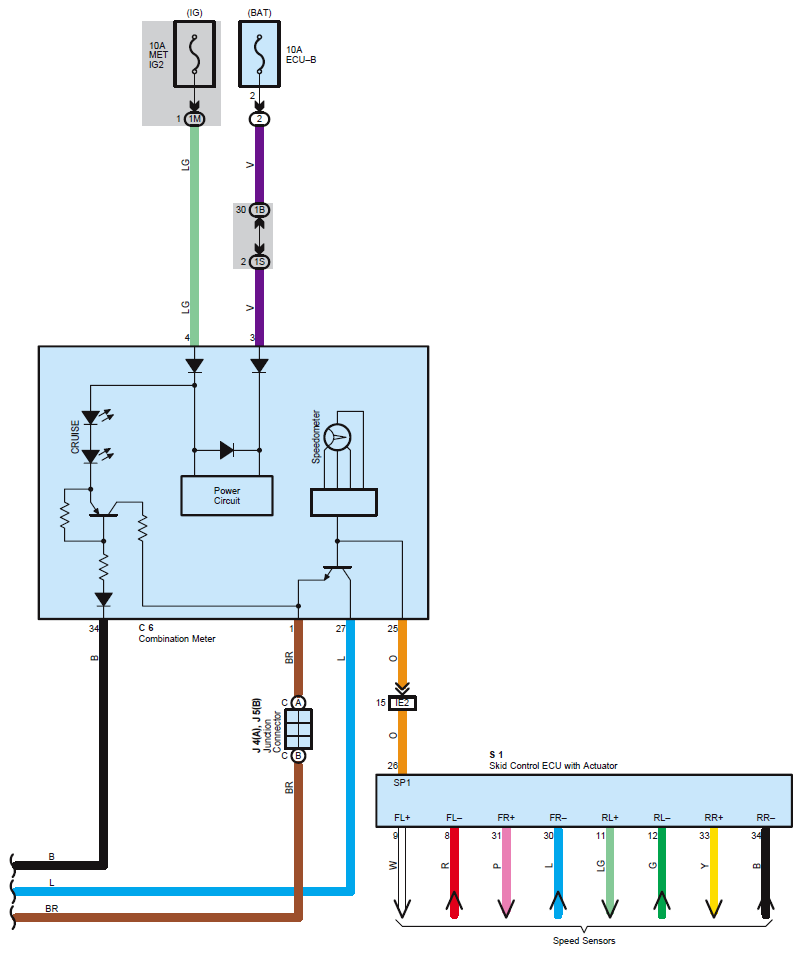

Fig 3: Cruise Control - Circuit Diagram (3 Of 3)
G07603200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
