System Diagram

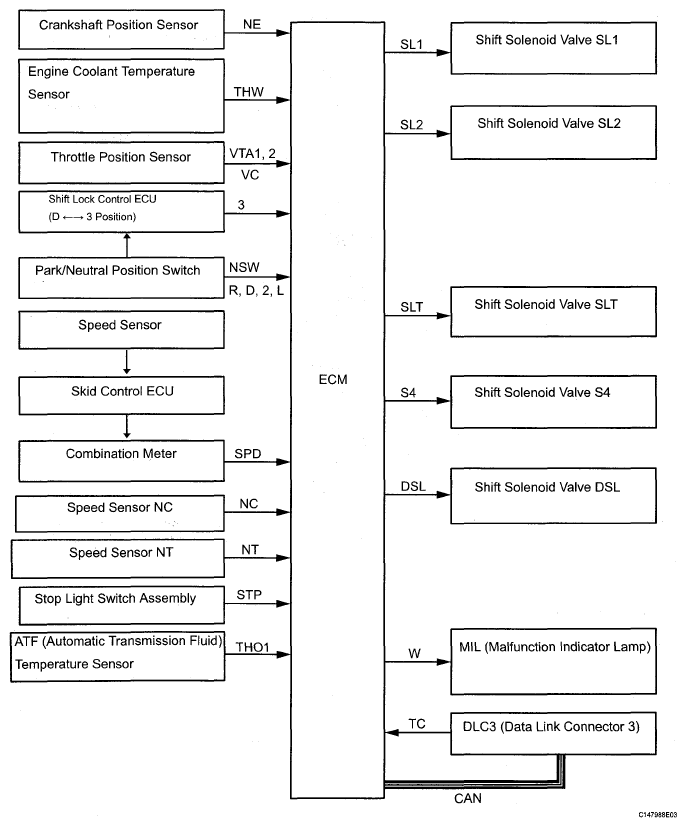

The configuration of the electronic control system in the U241E automatic transaxles is as shown in the following chart.

Fig 1: Automatic Transaxle System Diagram
G05539278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
