Transmission Revolution Sensor: Components

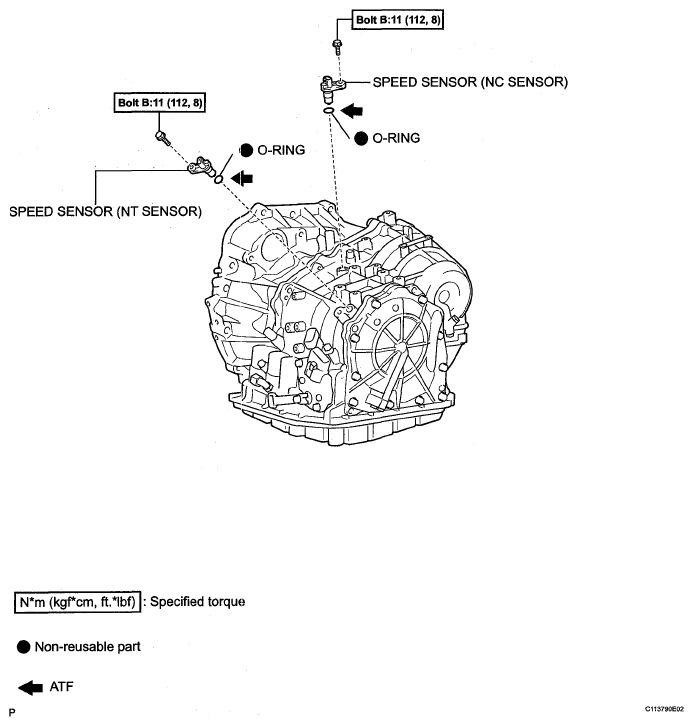

Fig 1: Transmission Revolution Sensor Replacement Components With Torque Specifications
G05539355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
