Fuel Injector: Components

Fig 1: Identifying Fuel Injector Components (1 Of 2)
G05387484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

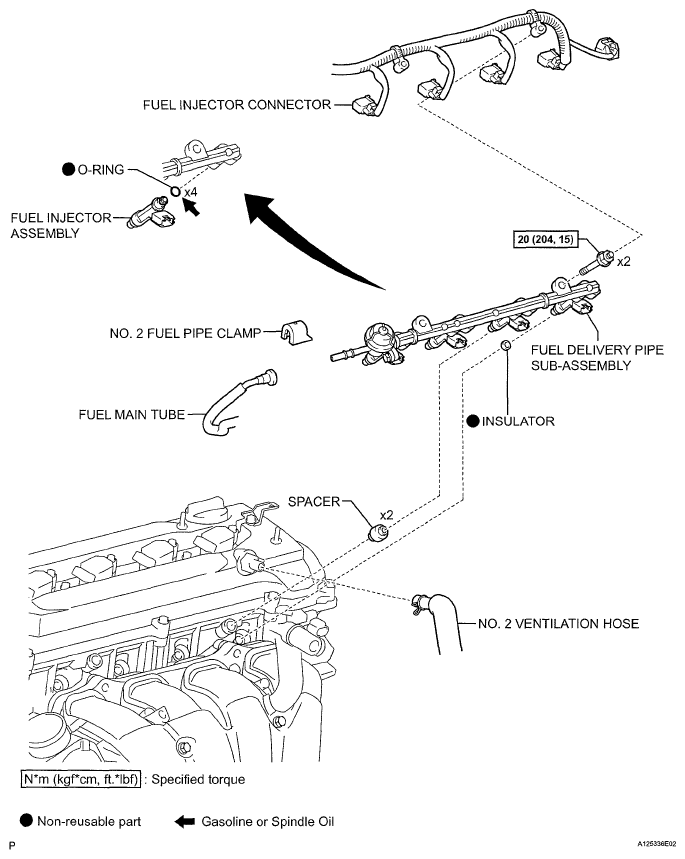

Fig 2: Identifying Fuel Injector Components (2 Of 2)
G05387485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
