Heated Oxygen Sensor: Components

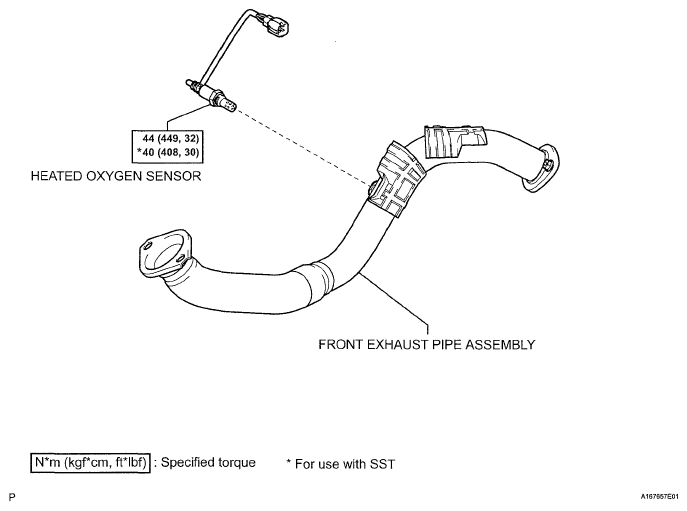

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications
G05387007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
