Lower Instrument Panel: Components

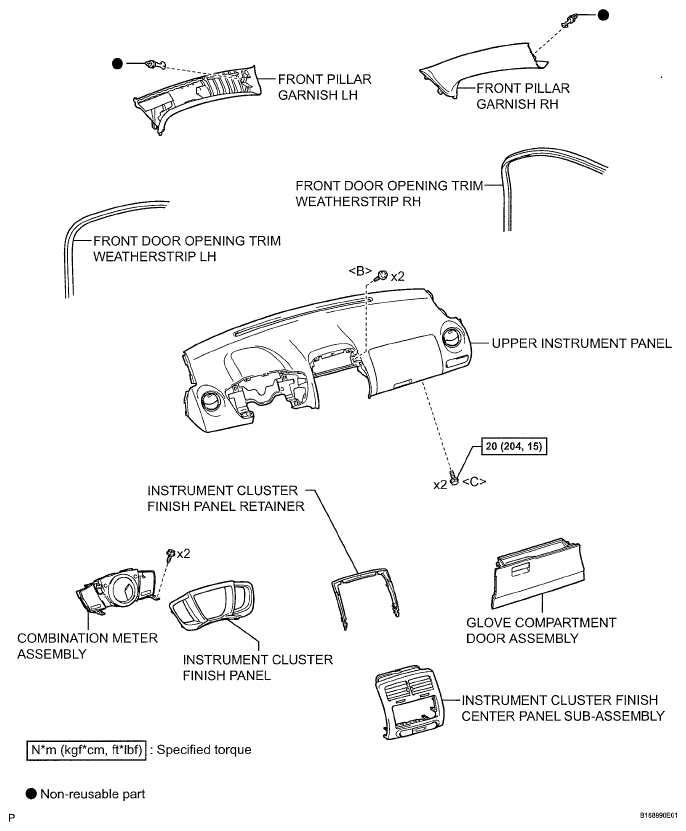

Fig 1: Upper Instrument Panel Replacement Components With Torque Specifications (1 Of 2)
G05401569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

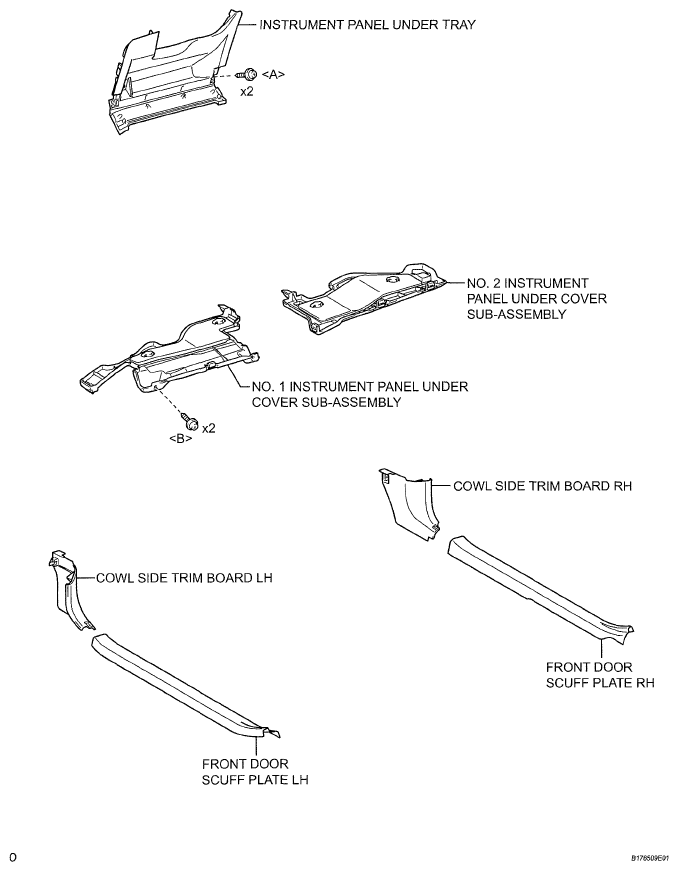

Fig 2: Identifying Lower Instrument Panel Components (2 Of 5)
G05401662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

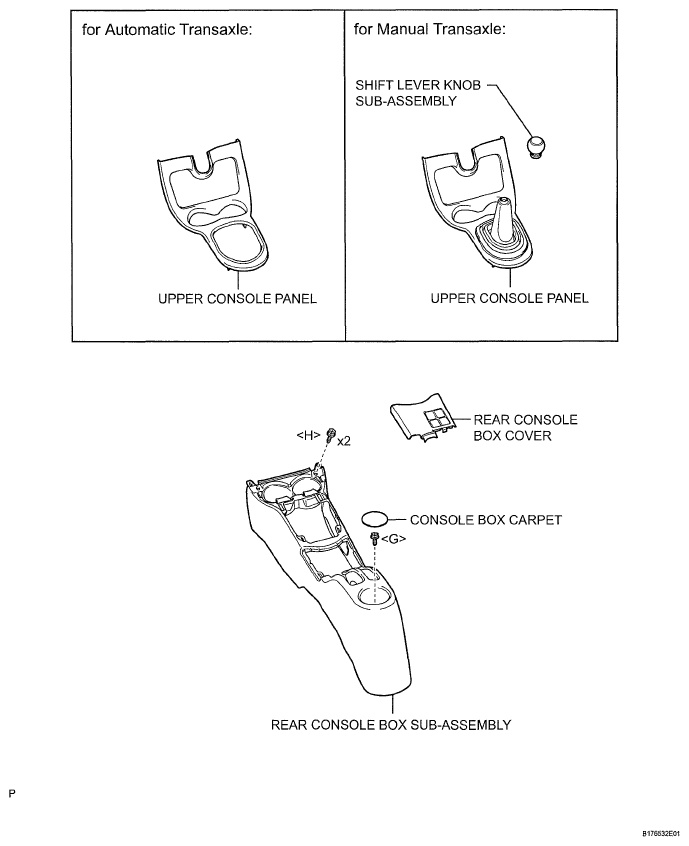

Fig 3: Identifying Lower Instrument Panel Components (3 Of 5)
G05401663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

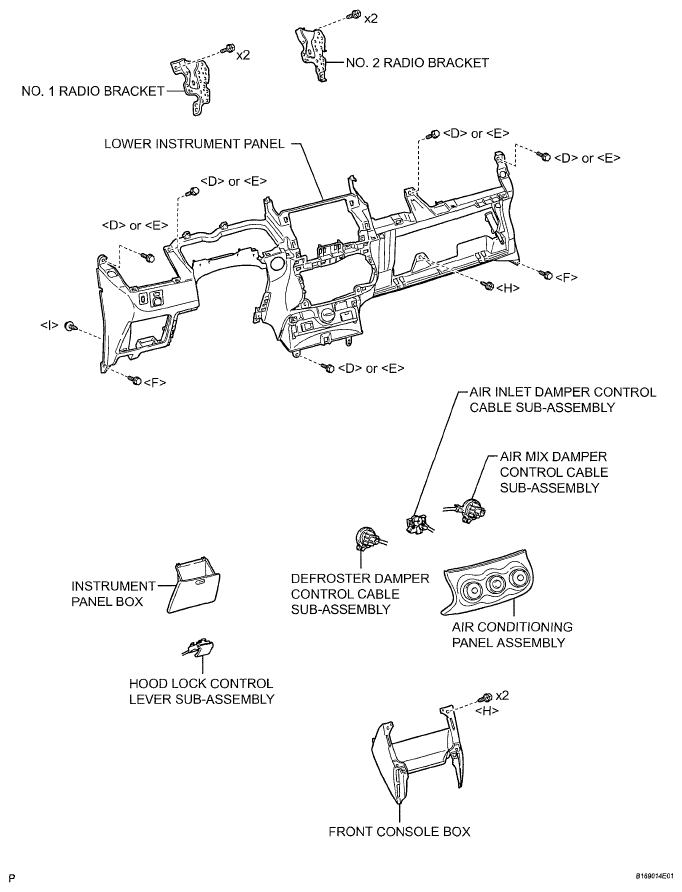

Fig 4: Identifying Lower Instrument Panel Components (4 Of 5)
G05401664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

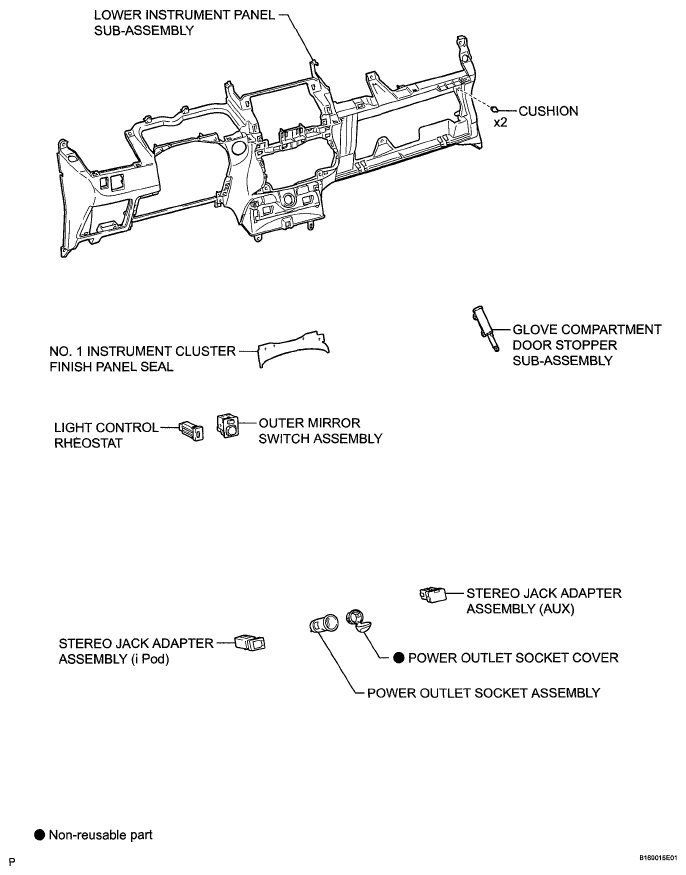

Fig 5: Identifying Lower Instrument Panel Components (5 Of 5)
G05403186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
