System Diagram

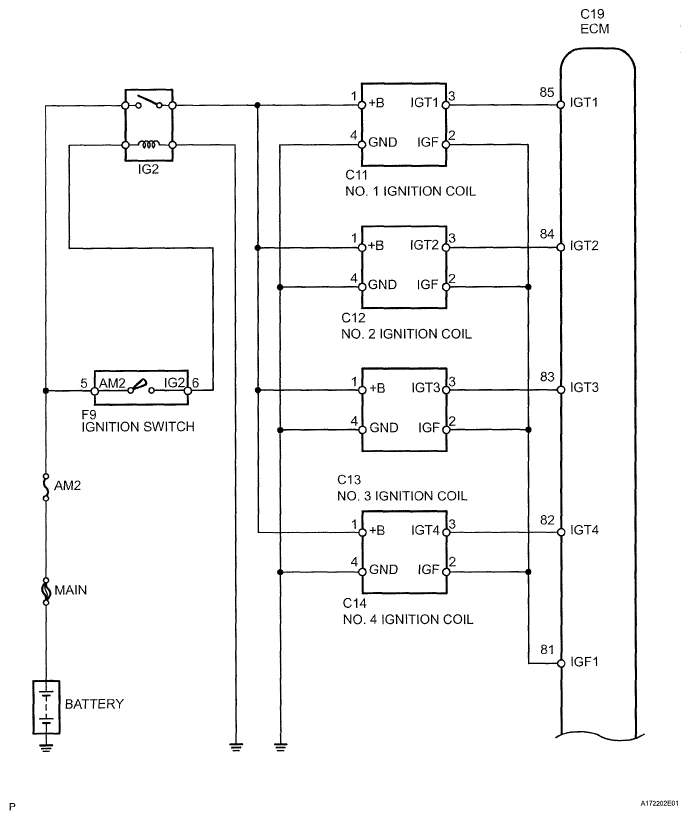

Fig 1: Ignition System Diagram (1 Of 2)
G05399755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Ignition System Diagram (2 Of 2)
G05399756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
