PCV Valve: Components

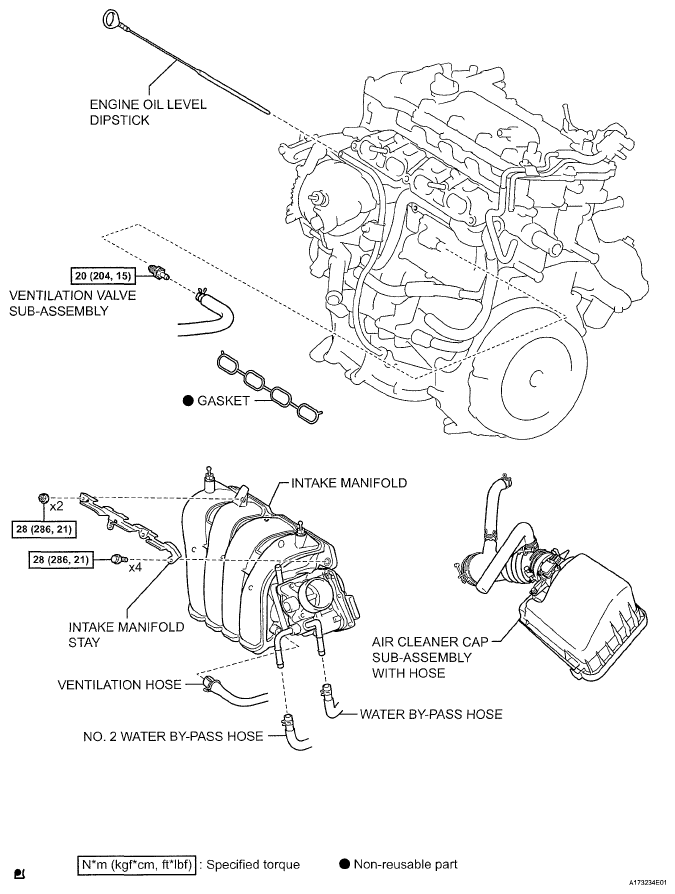

Fig 1: PCV Valve Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

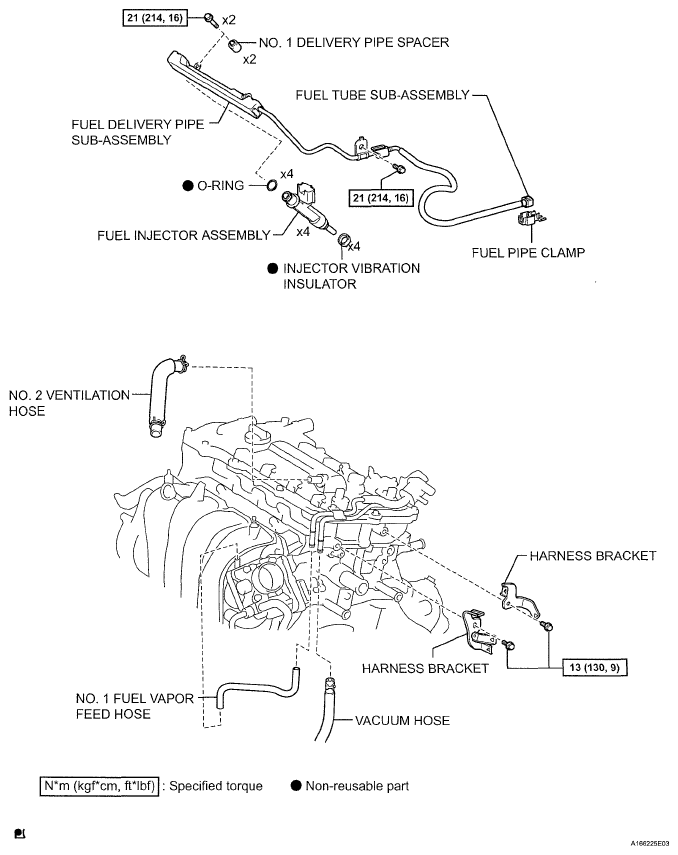

Fig 2: PCV Valve Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: PCV Valve Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: PCV Valve Replacement Components With Torque Specifications (4 Of 5)

Fig 5: PCV Valve Replacement Components With Torque Specifications (5 Of 5)
