Manual Transaxle Assembly: Components

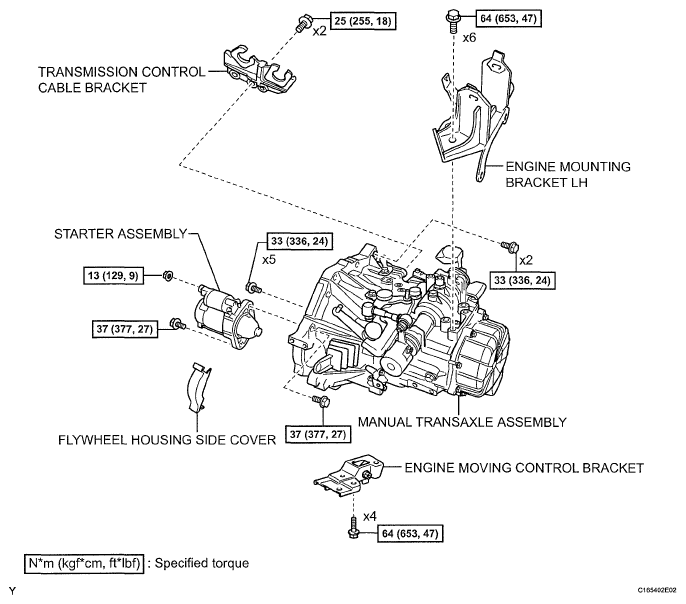

Fig 1: Manual Transaxle Assembly Replacement Components With Torque Specifications
G05400491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
