Shift Lever Assembly: Components

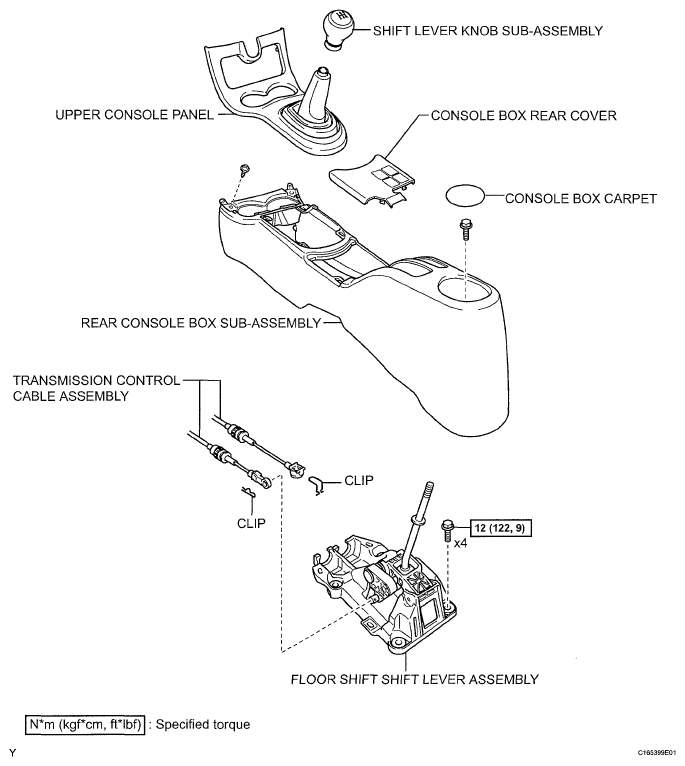

Fig 1: Shift Lever Assembly Replacement Components With Torque Specifications
G05400470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
