ECT and A/T Indicator: Notes

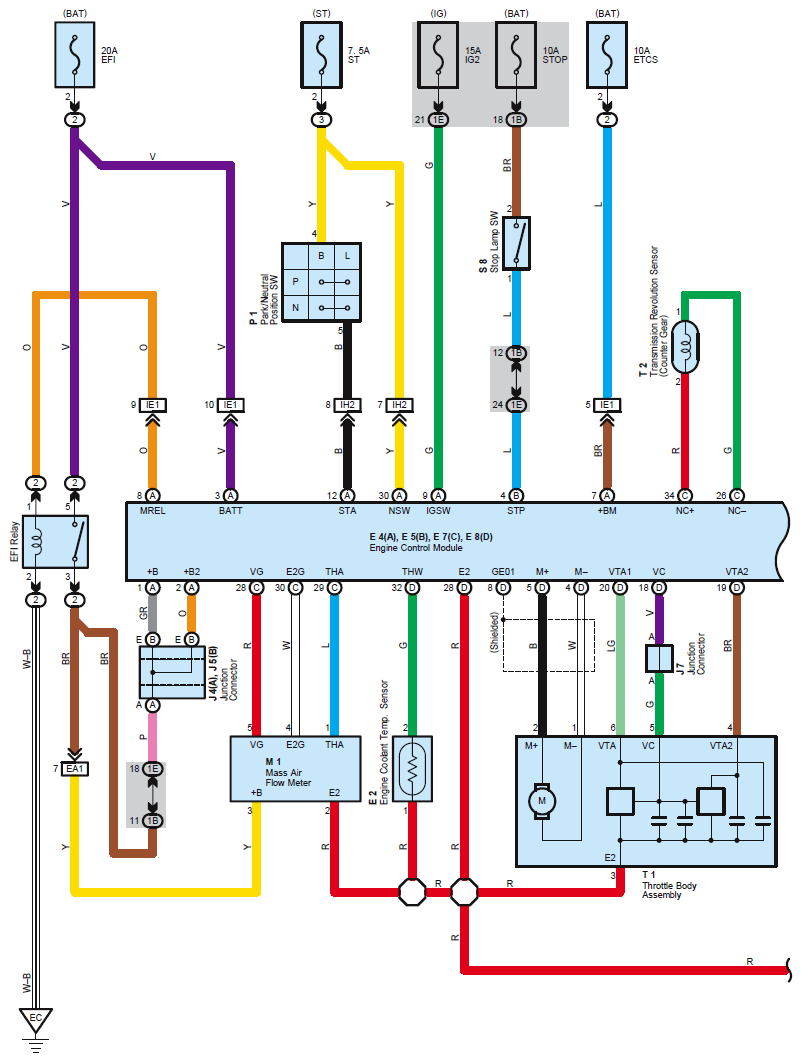

Fig 1: ECT And A/T Indicator - Circuit Diagram (1 Of 4)
G07604558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

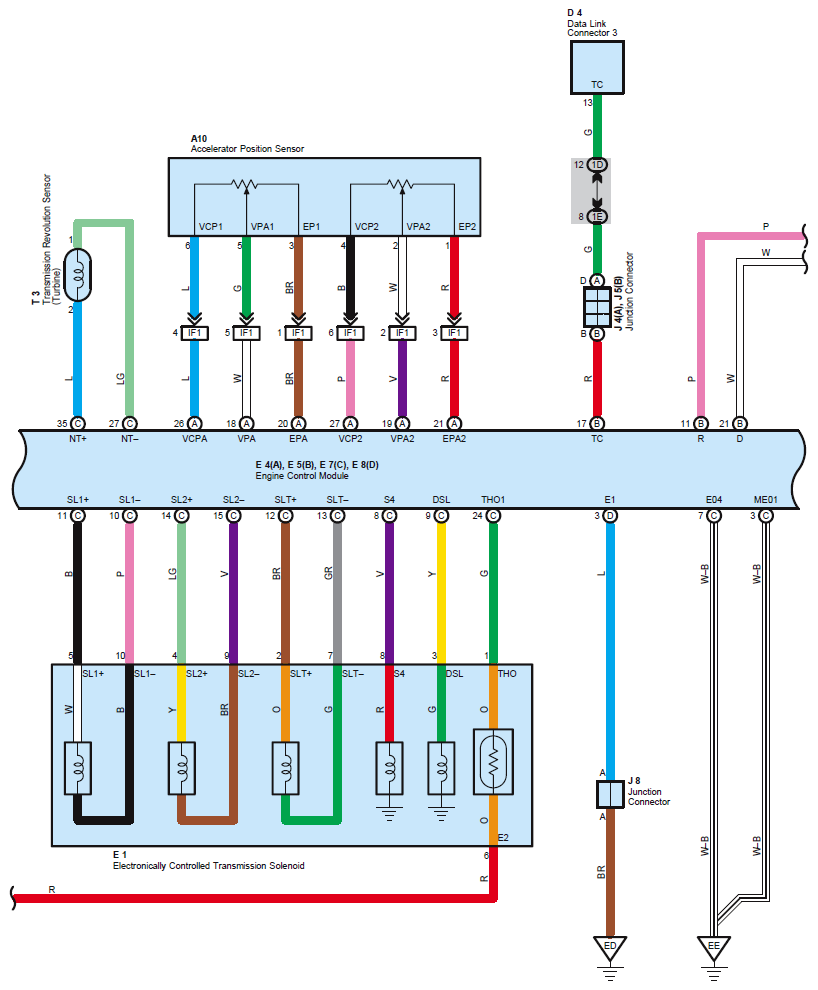

Fig 2: ECT And A/T Indicator - Circuit Diagram (2 Of 4)
G07604559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

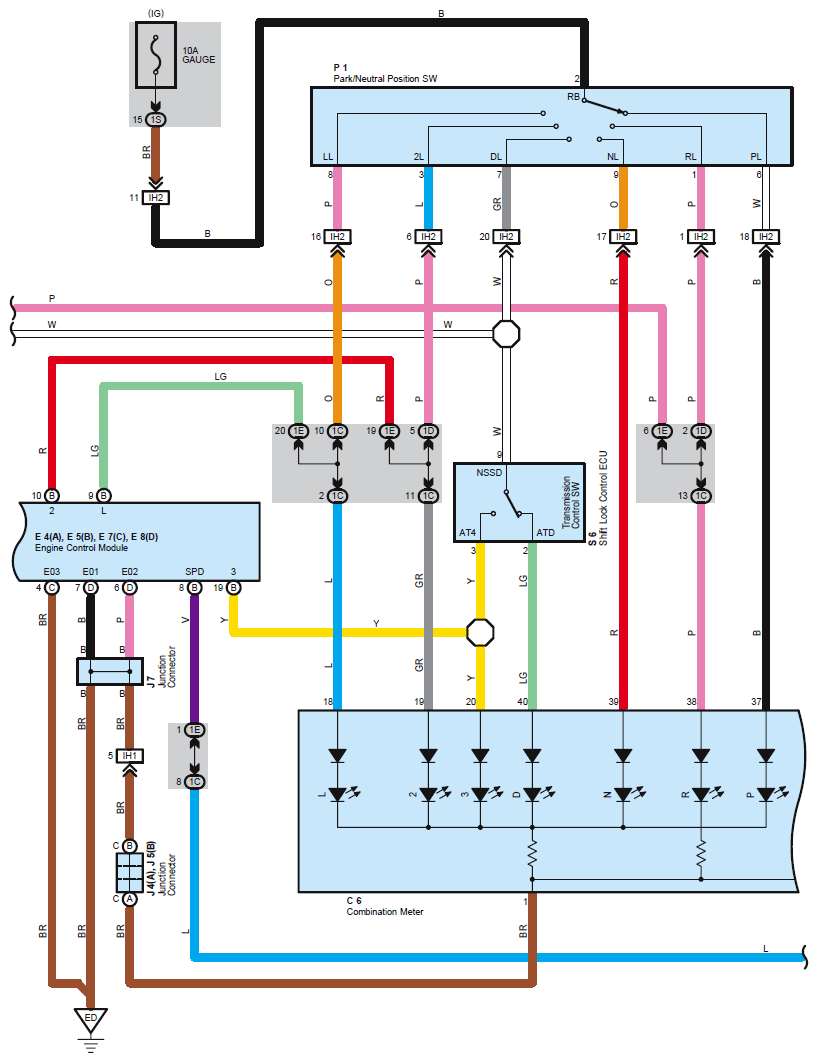

Fig 3: ECT And A/T Indicator - Circuit Diagram (3 Of 4)
G07604560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

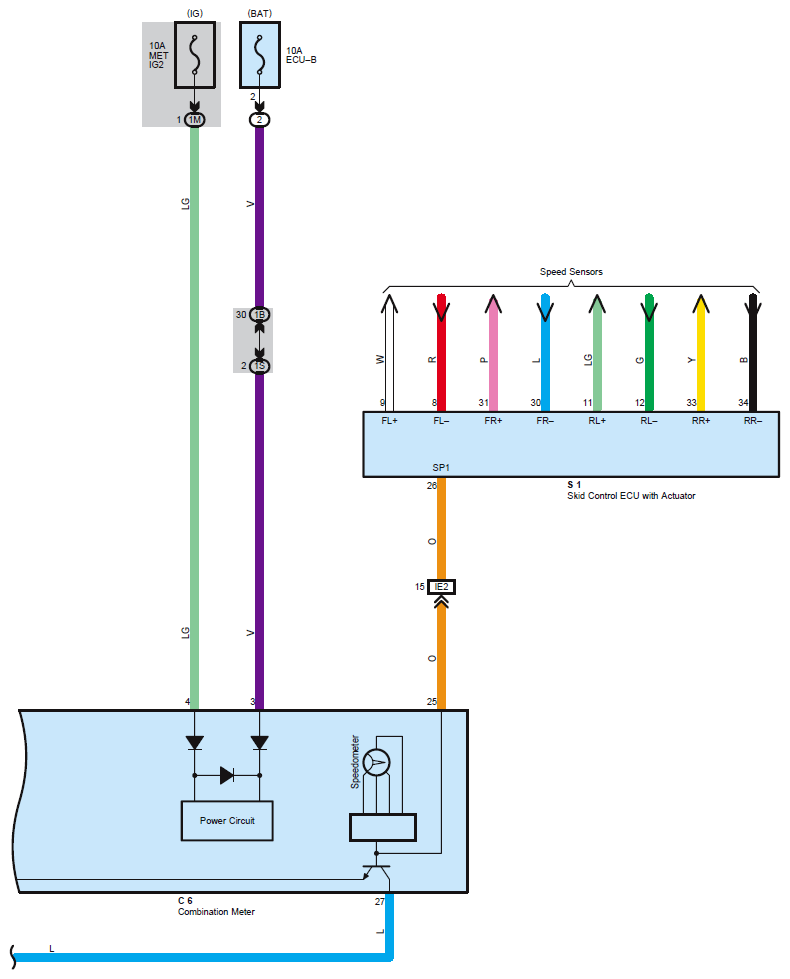

Fig 4: ECT And A/T Indicator - Circuit Diagram (4 Of 4)
G07604561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
