Upper Instrument Panel: Components

Fig 1: Upper Instrument Panel Replacement Components With Torque Specifications (1 Of 2)
G05541857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

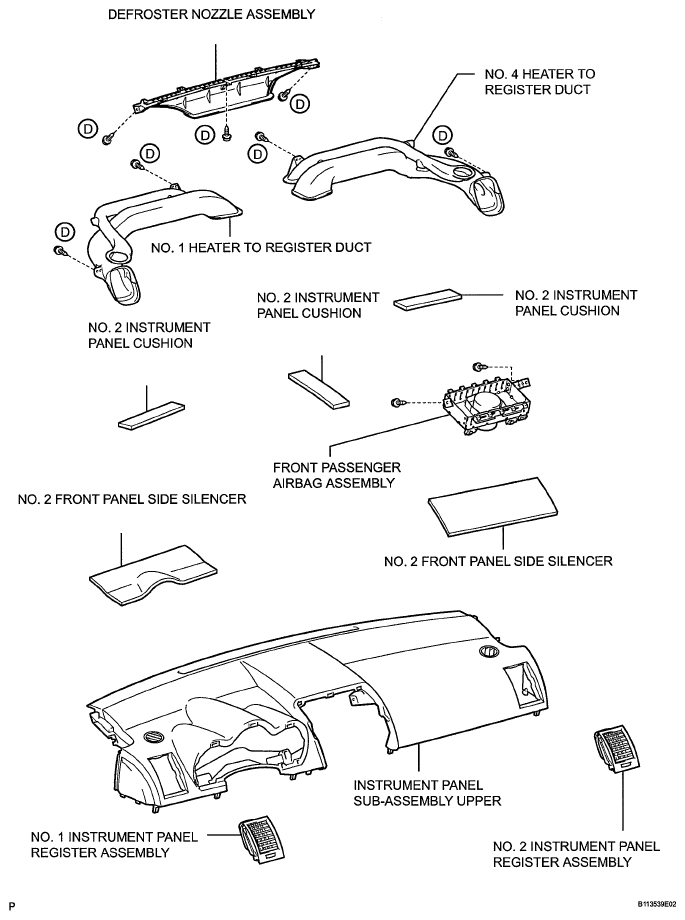

Fig 2: Identifying Upper Instrument Panel Components (2 Of 2)
G05541858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
