Door Lock Control: Notes

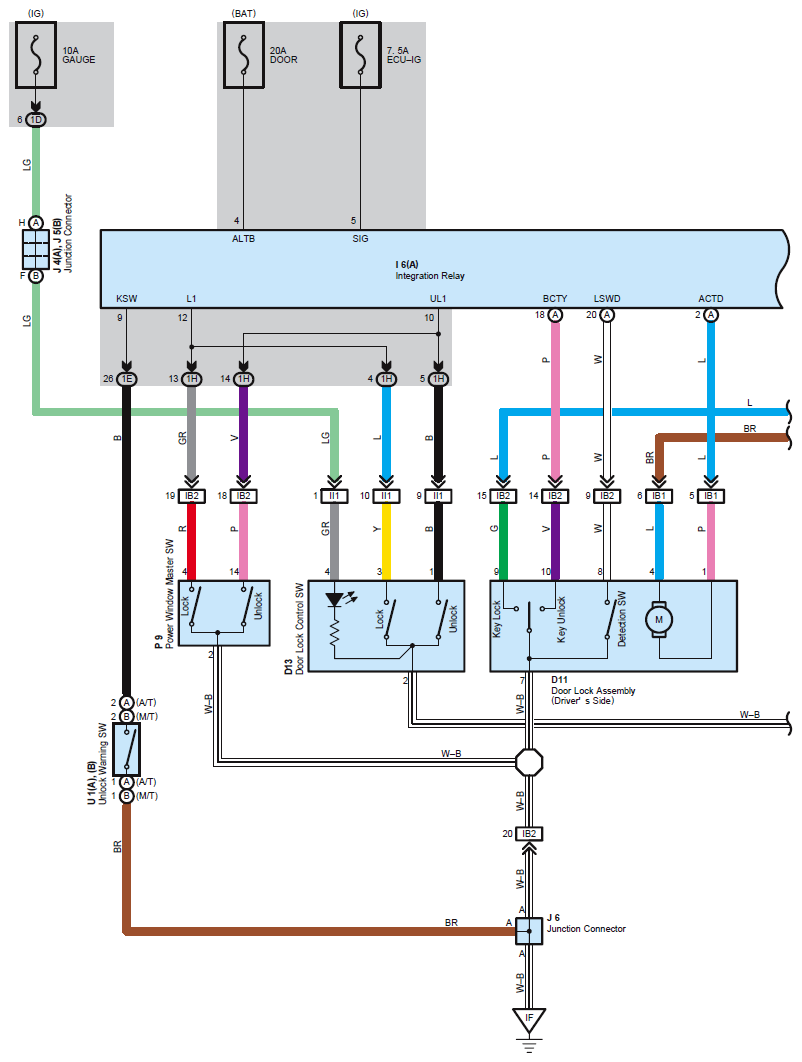

Fig 1: Door Lock Control - Circuit Diagram (1 Of 2)
G07604547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

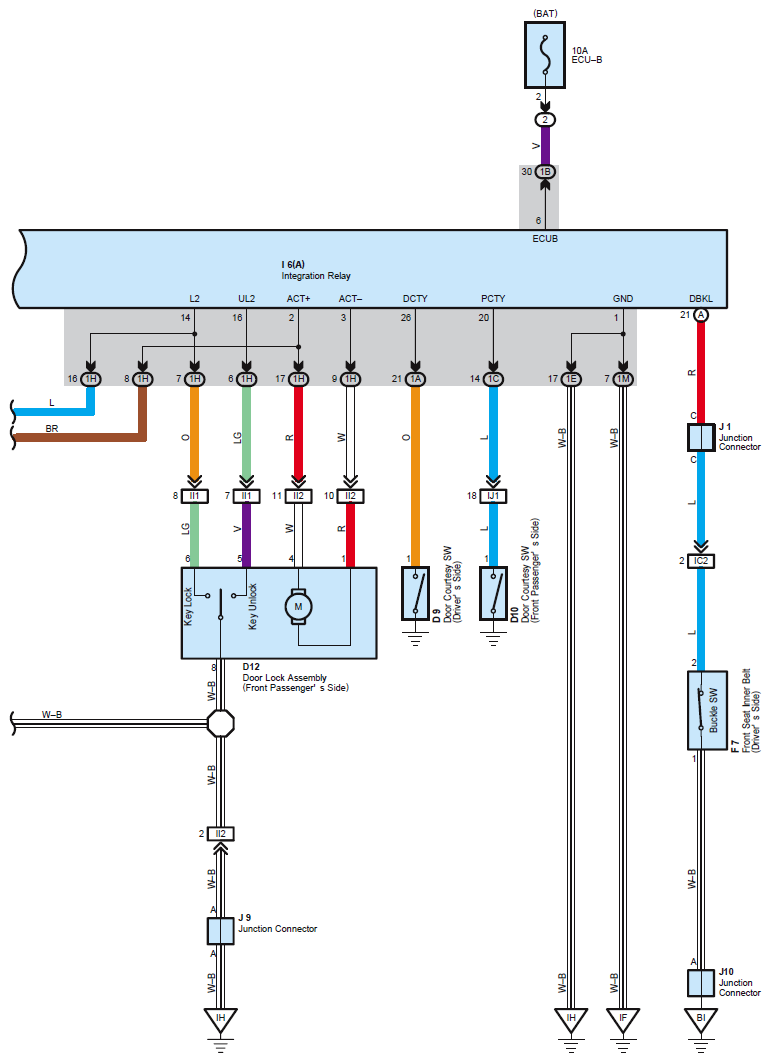

Fig 2: Door Lock Control - Circuit Diagram (2 Of 2)
G07604548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
