Back Door Lock: Components

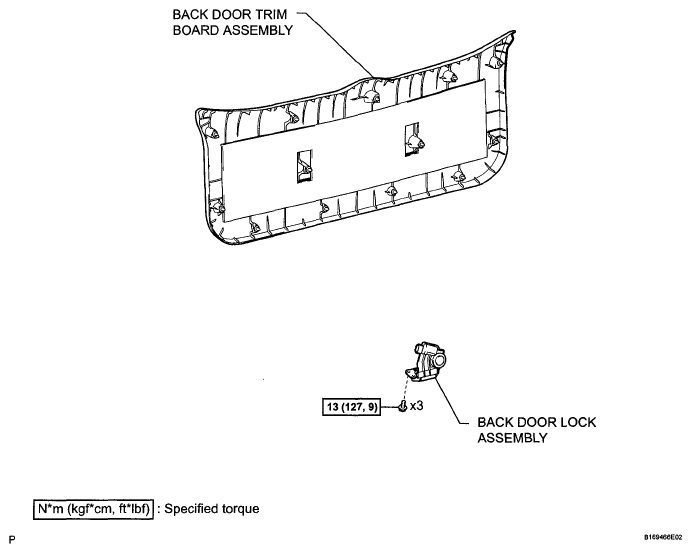

Fig 1: Back Door Lock Replacement Components With Torque Specifications
G05391082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
