Door Control Receiver: Components

Fig 1: Door Control Receiver Replacement Components With Torque Specifications (1 Of 2)
G05391087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

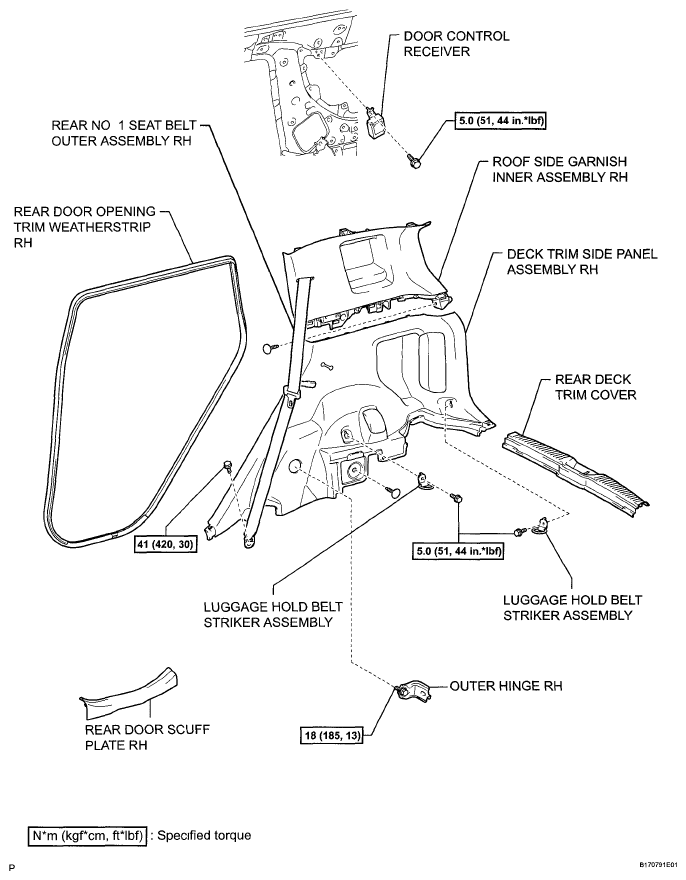

Fig 2: Door Control Receiver Replacement Components With Torque Specifications (2 Of 2)
G05391088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
