Unlock Warning Switch: Components

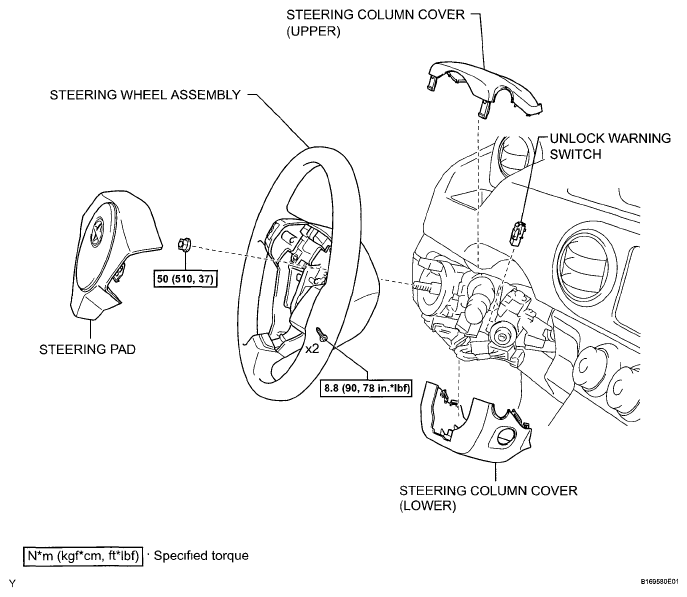

Fig 1: Unlock Warning Switch Replacement Components With Torque Specifications
G05391049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
