Exhaust Pipe: Components

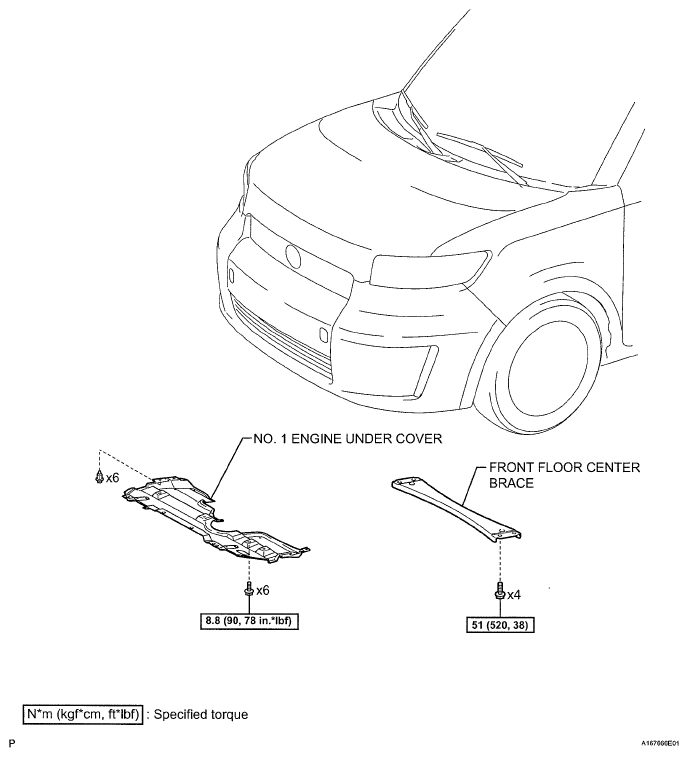

Fig 1: Identifying Exhaust Pipe Replacement Components With Torque Specification (1 Of 2)
G05387687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

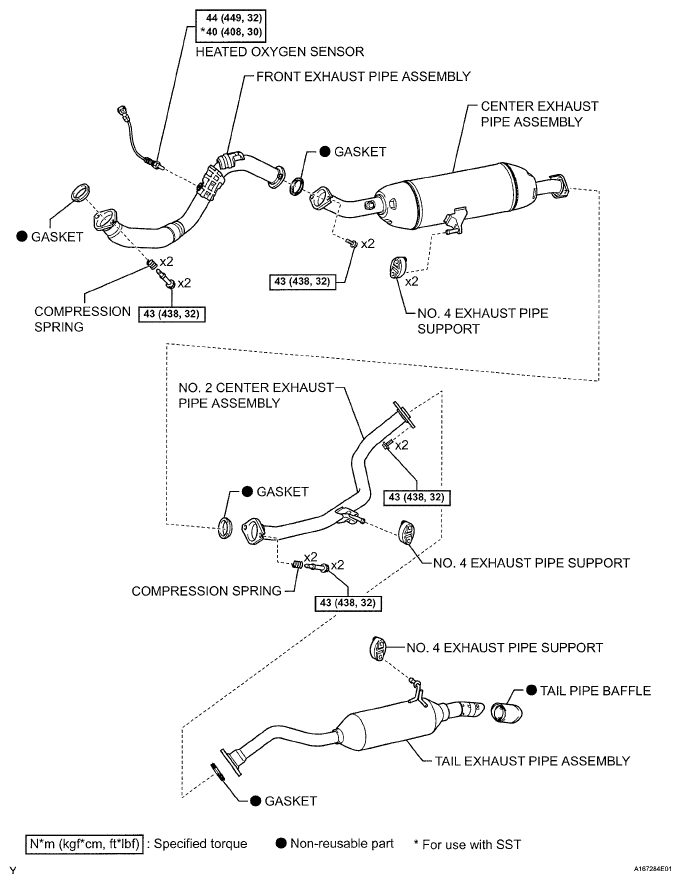

Fig 2: Identifying Exhaust Pipe Replacement Components With Torque Specification (2 Of 2)
G05387688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
