Front Axle Hub: Components

WARNING: This page is about a different car, the 2008 Scion xB. However, it is still accessible from the selected car via links, so may be relevant.

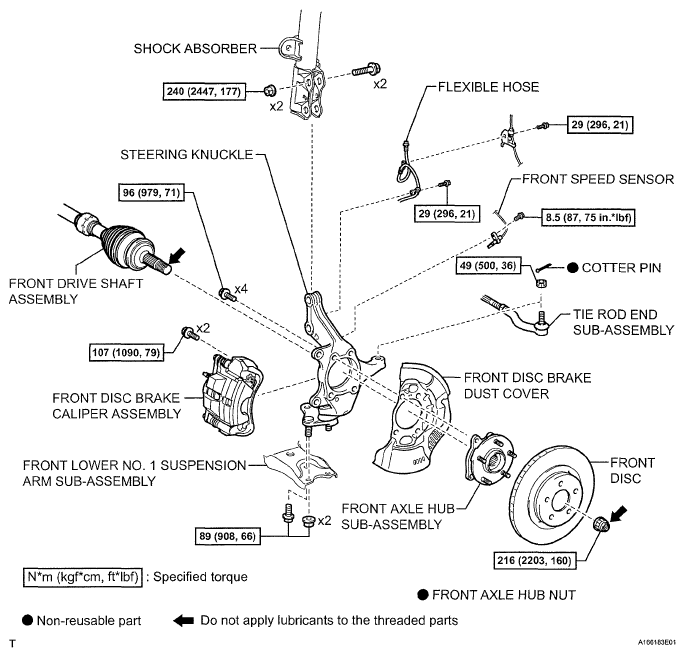

Fig 1: Front Axle Hub Replacement Components With Torque Specifications
G05389149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
