Clutch Unit: Components

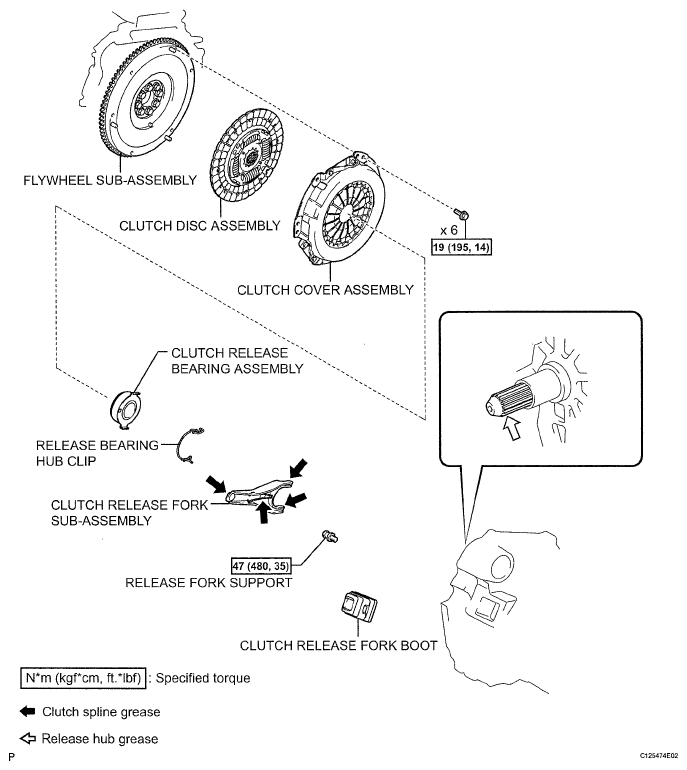

Fig 1: Clutch Unit Components w/Torque Specifications
G05388702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
