Manual Transaxle Unit: Components

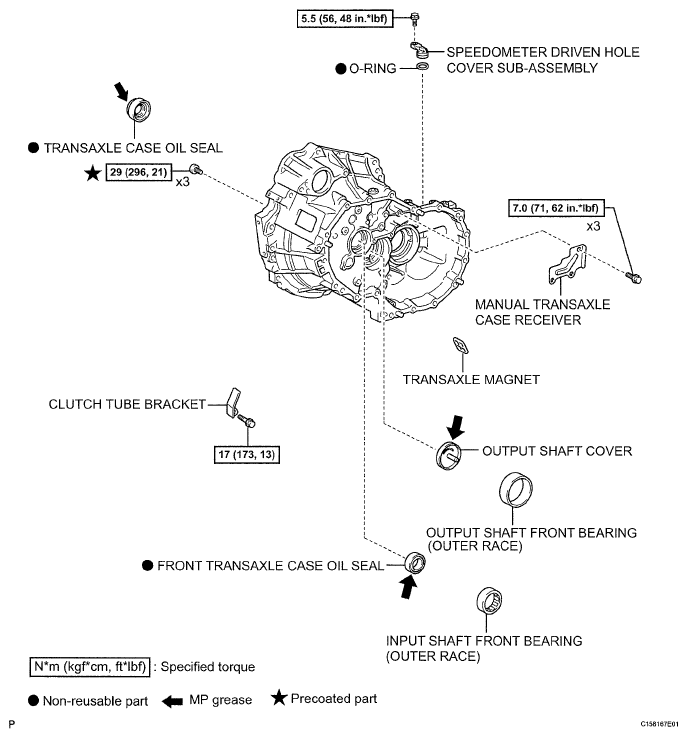

Fig 1: Manual Transaxle Unit Components With Torque Specification (1 Of 7)
G05388787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

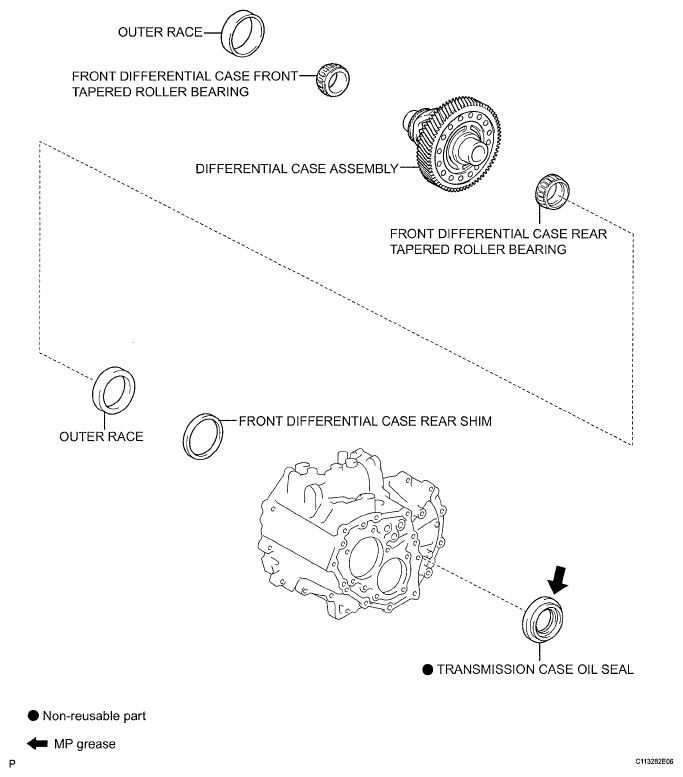

Fig 2: Identifying Manual Transaxle Unit Components (2 Of 7)
G05388788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

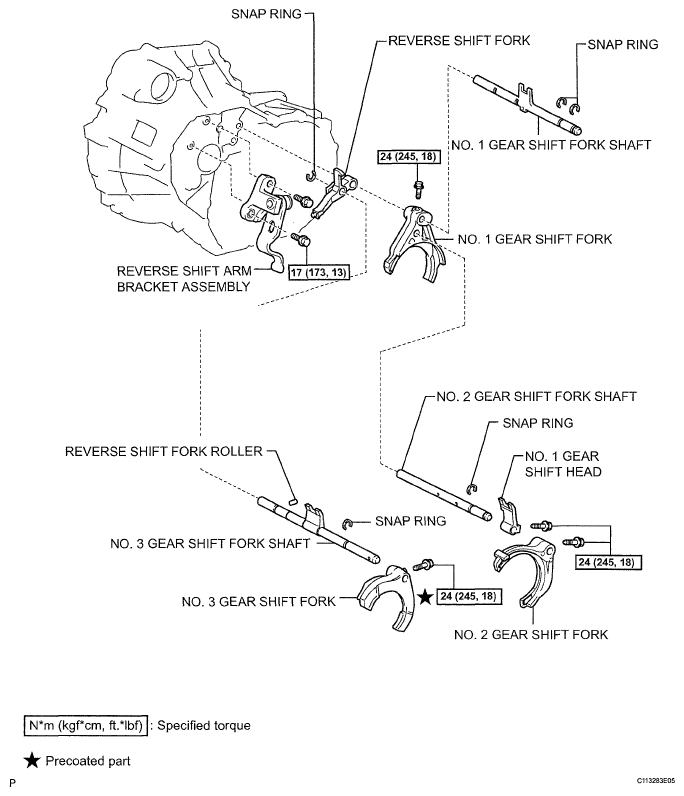

Fig 3: Manual Transaxle Unit Components With Torque Specification (3 Of 7)
G05388789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

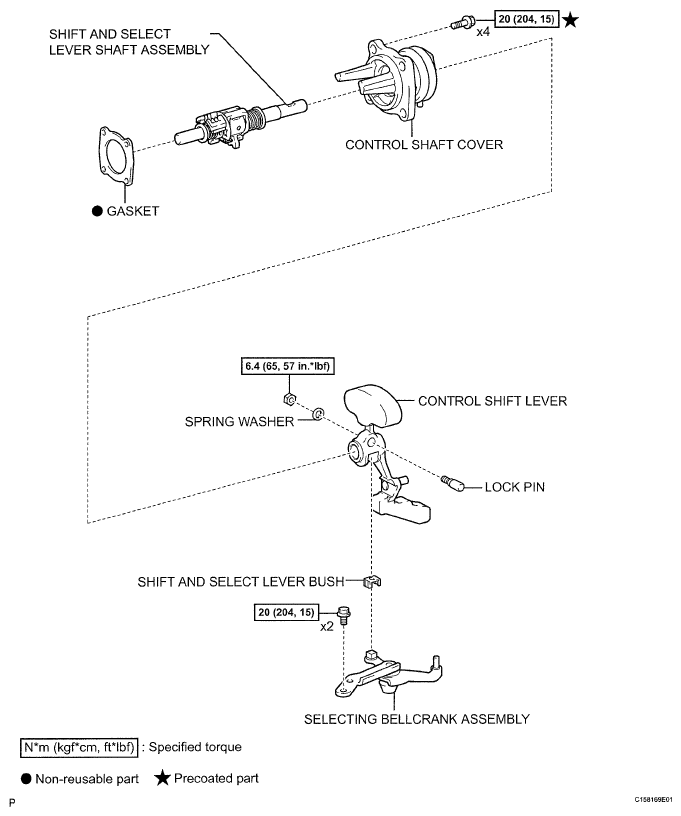

Fig 4: Manual Transaxle Unit Components With Torque Specification (4 Of 7)
G05388790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

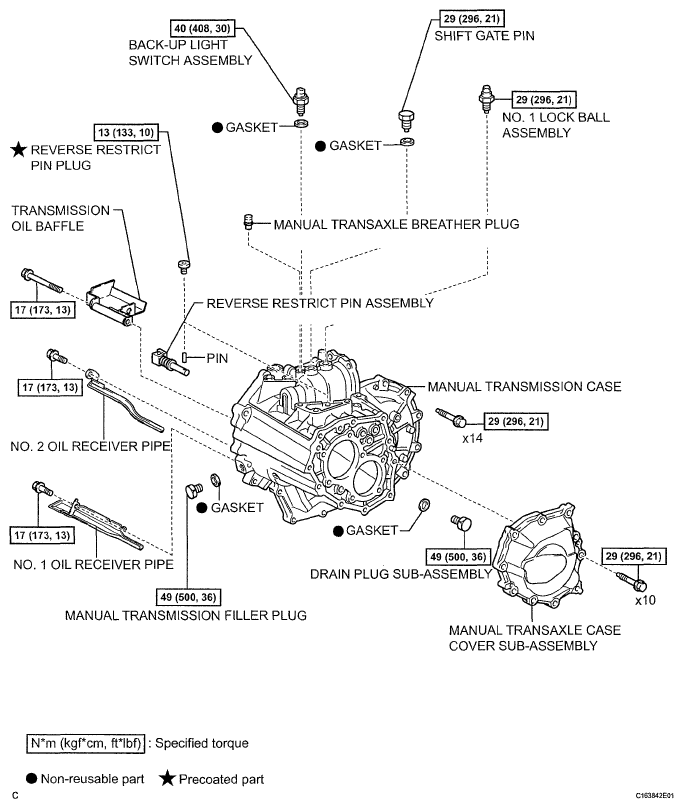

Fig 5: Manual Transaxle Unit Components With Torque Specification (5 Of 7)
G05388791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

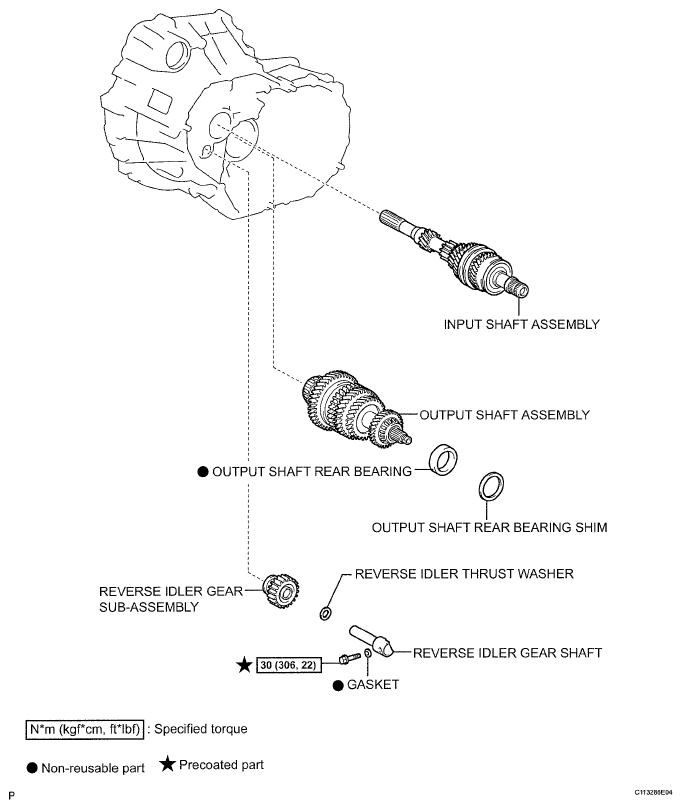

Fig 6: Manual Transaxle Unit Components With Torque Specification (6 Of 7)
G05388792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

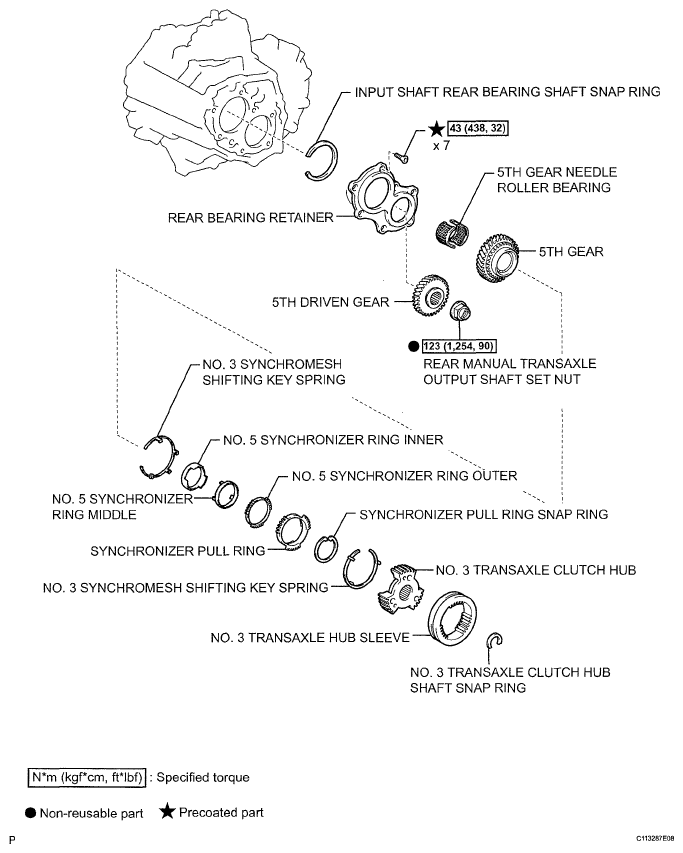

Fig 7: Manual Transaxle Unit Components With Torque Specification (7 Of 7)
G05388793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
