Transmission Control Cable: Components

Fig 1: Identifying Transmission Control Cable Components (1 Of 4)
G05388728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Transmission Control Cable Replacement Components With Torque Specifications (2 Of 4)
G05388737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Transmission Control Cable Replacement Components With Torque Specifications (3 Of 4)
G05388738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

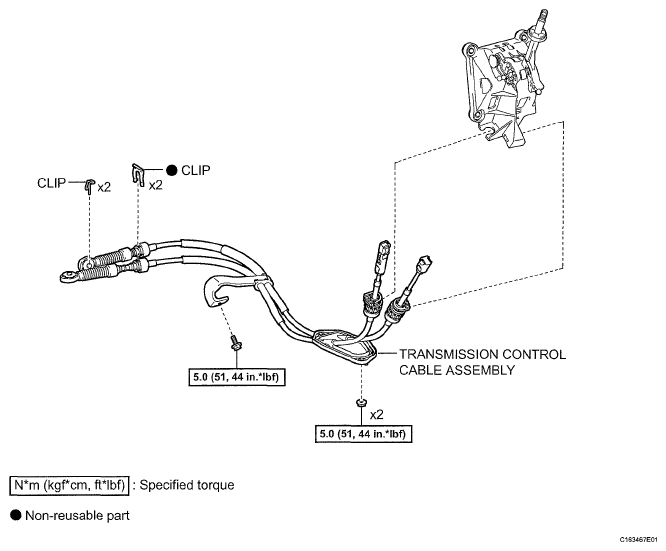

Fig 4: Transmission Control Cable Replacement Components With Torque Specifications (4 Of 4)
G05388739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
