Exhaust Manifold: Components

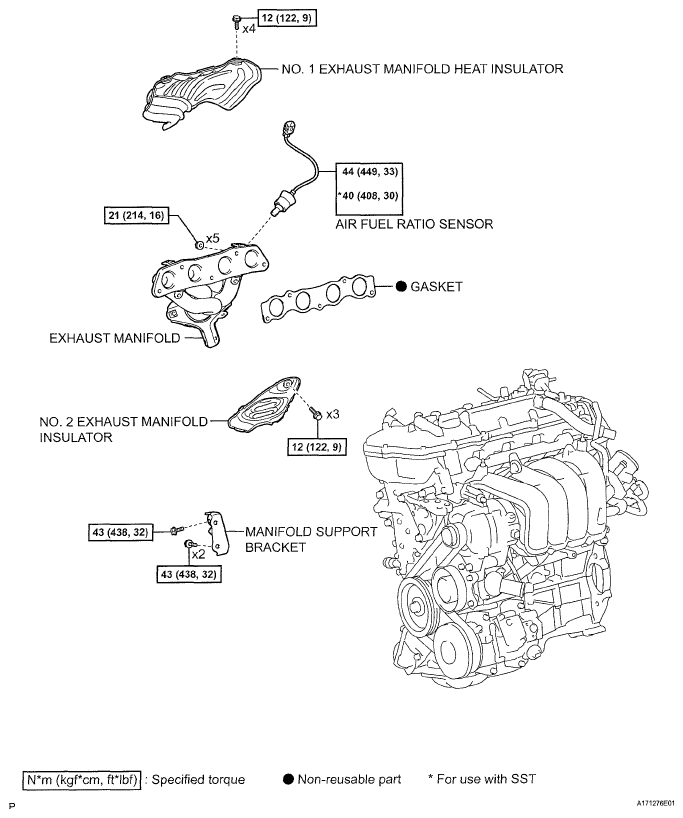

Fig 1: Identifying Exhaust Manifold Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Exhaust Manifold Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Exhaust Manifold Replacement Components With Torque Specifications (3 Of 4)

Fig 4: Identifying Exhaust Manifold Replacement Components With Torque Specifications (4 Of 4)
