Removal

DOOR LOCK: DOOR CONTROL TRANSMITTER: REMOVAL

REMOVAL
NOTICE: Special caution should be taken when handling precision electronic components.

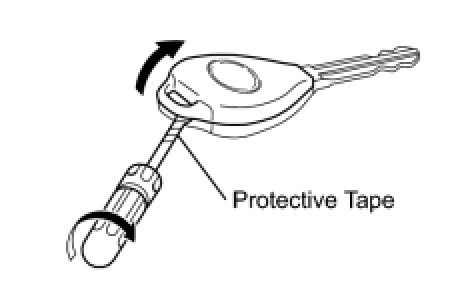

1. REMOVE TRANSMITTER HOUSING COVER





(a) Using a screwdriver with its tip wrapped in protective tape, pry apart the transmitter housing cover.
NOTICE: Do not use excessive force when prying apart the housing cover.

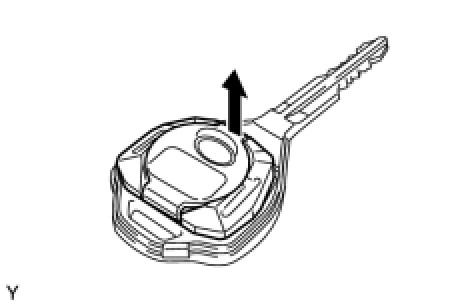

2. REMOVE DOOR CONTROL TRANSMITTER MODULE





(a) Remove the door control transmitter module.
