Customize Parameters

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM: CUSTOMIZE PARAMETERS

CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH TECHSTREAM (REFERENCE)
HINT: The following items can be customized.
NOTICE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Record the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.

(a) Connect a Techstream to the DLC3.
(b) Turn the ignition switch ON.
(c) Turn the tester on.
(d) Enter the following menus: Body Electrical / Main Body / Utility / Customize / Wireless Door Lock.

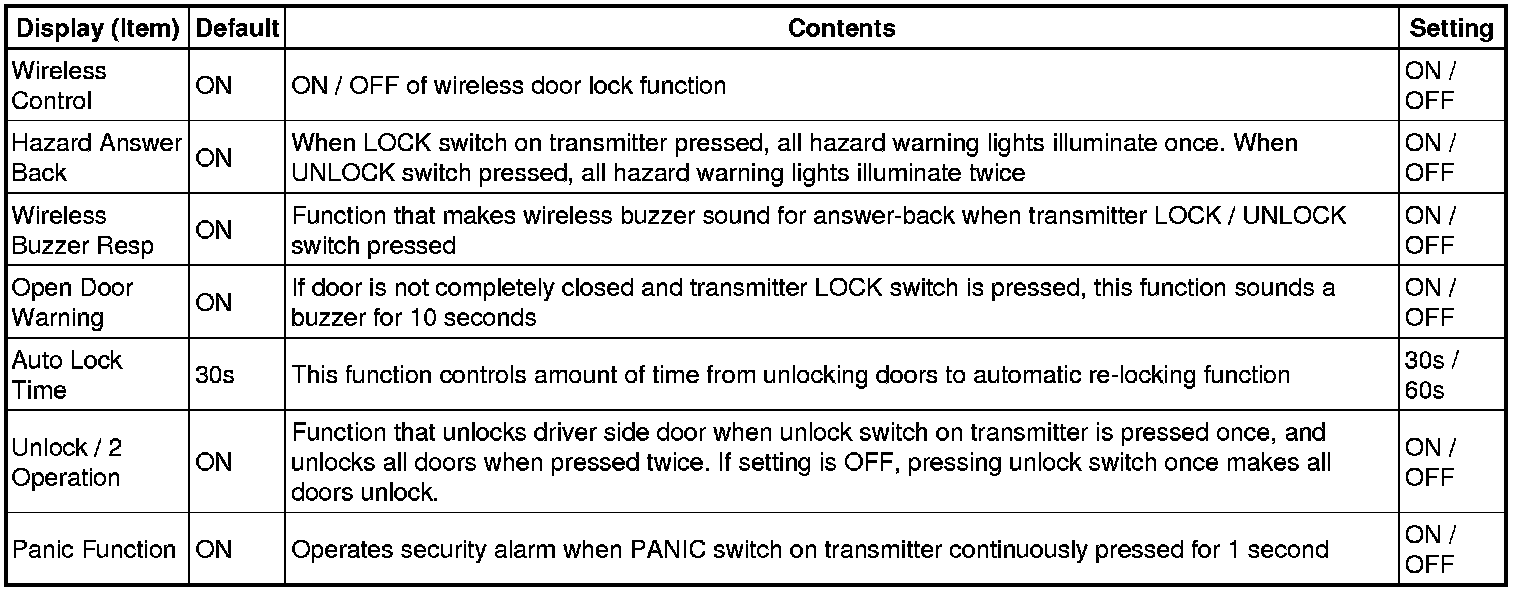

(e) Select the setting by referring to the table below.

Main Body:
