Installation

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSTALLATION

INSTALLATION

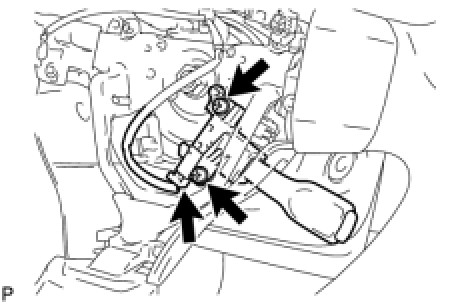

1. INSTALL CRUISE CONTROL MAIN SWITCH





(a) Install the cruise control main switch with the 2 screws.
Torque: 2.4 Nm (24 kgf-cm, 21 in-lbf)
(b) Connect the connector.
2. INSTALL STEERING PAD Installation
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
4. INSPECT SRS WARNING LIGHT
Diagnosis System
