Inspection








2ZR-FE ENGINE CONTROL SYSTEM: MASS AIR FLOW METER: INSPECTION

INSPECTION

1. INSPECT MASS AIR FLOW METER

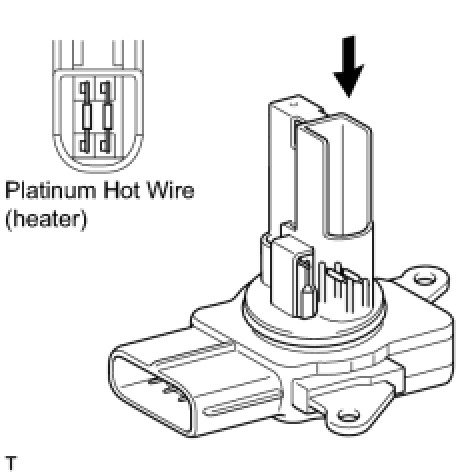

(a) Using a work light, check that the platinum filament (heater portion) in the mass air flow meter has no foreign matter attached.
OK:
No foreign matter attached.
