Removal

2ZR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: REMOVAL

REMOVAL

1. DRAIN ENGINE COOLANT Service and Repair
2. REMOVE NO. 2 CYLINDER HEAD COVER Removal
3. REMOVE ENGINE COOLANT TEMPERATURE SENSOR





(a) Disconnect the engine coolant temperature sensor connector.

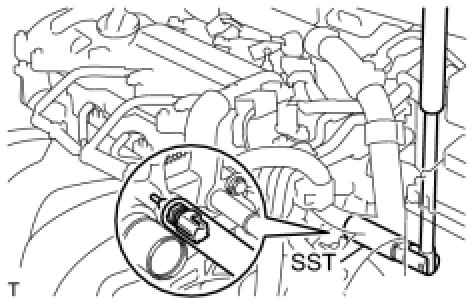

(b) Using SST, remove the engine coolant temperature sensor.
SST: 09817-33190
