Installation

2ZR-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSTALLATION

INSTALLATION

1. INSTALL CRANKSHAFT POSITION SENSOR

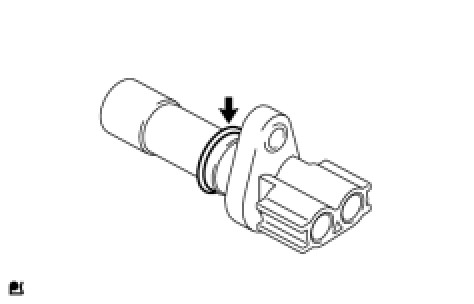

(a) Apply a light coat of engine oil to the O-ring on the crankshaft position sensor.

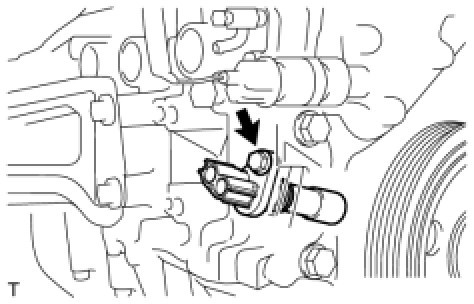

(b) Install the crankshaft position sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(c) Connect the crankshaft position sensor connector.
2. INSPECT FOR OIL LEAK
3. INSTALL ENGINE UNDER COVER RH
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
