2ZR-FE ENGINE CONTROL SYSTEM: ECM: INSTALLATION

INSTALLATION

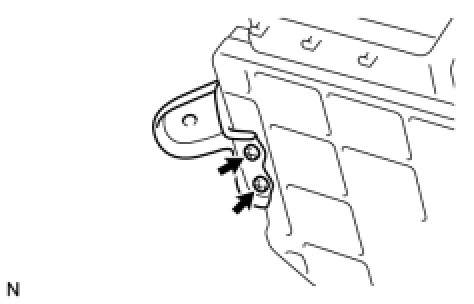

1. INSTALL NO. 2 ECM BRACKET
(a) Install the No. 2 ECM bracket with the 2 screws.

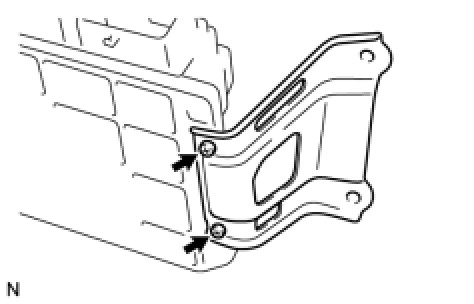

2. INSTALL ECM BRACKET
(a) Install the ECM bracket with the 2 screws.

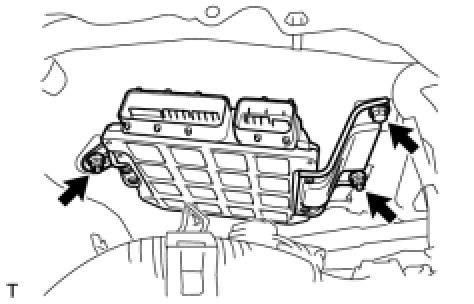

3. INSTALL ECM





(a) Install the ECM with the bolt and 2 nuts.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)

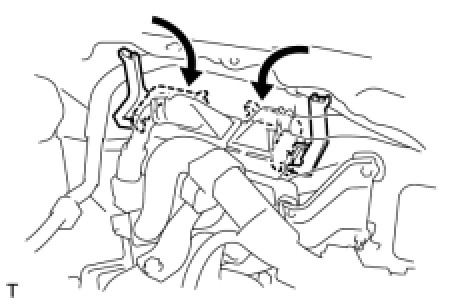

(b) Connect the 2 ECM connectors.
(c) Install the 2 lock knobs and harness clamp.
4. INSTALL OUTER COWL TOP PANEL Installation
5. INSTALL FRONT AIR SHUTTER SEAL RH Installation
6. INSTALL FRONT WIPER MOTOR AND LINK Installation
7. INSTALL COWL TOP VENTILATOR LOUVER LH Installation
8. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
9. INSTALL HOOD TO COWL TOP SEAL Installation
10. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH Installation
11. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH Installation
12. INSTALL FRONT WIPER ARM HEAD CAP Installation
