Installation

2ZR-FE IGNITION: IGNITION COIL AND SPARK PLUG: INSTALLATION

INSTALLATION

1. INSTALL SPARK PLUG
(a) Install the 4 spark plugs.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
2. INSTALL IGNITION COIL ASSEMBLY

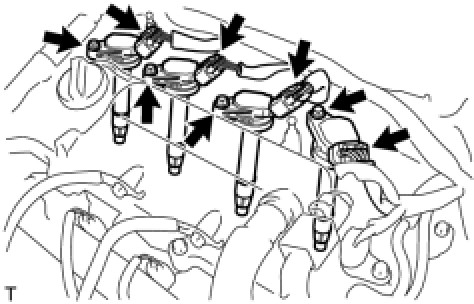

(a) Install the 4 ignition coils with the 4 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
NOTICE: Do not damage the rubber ignition coil tips when installing the ignition coils.

(b) Connect the 4 ignition coil connectors.

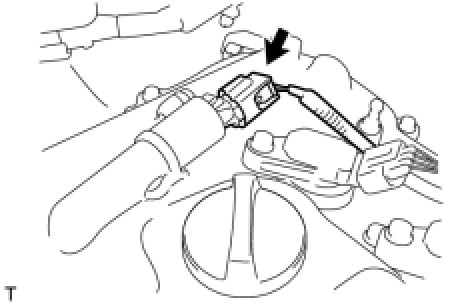

(c) Connect the camshaft timing oil control valve connector.
3. INSTALL NO. 2 CYLINDER HEAD COVER

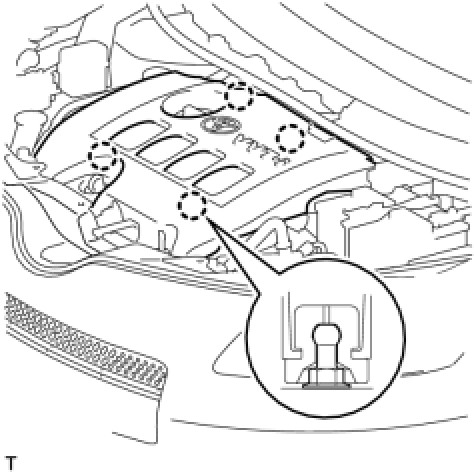

(a) Engage the 4 fittings shown and install the No. 2 cylinder head cover by applying pressure to it.
HINT: Make sure that the oil filler cap and the engine oil level dipstick are correctly installed before installing the No. 2 cylinder head cover.
