Computers and Control Systems

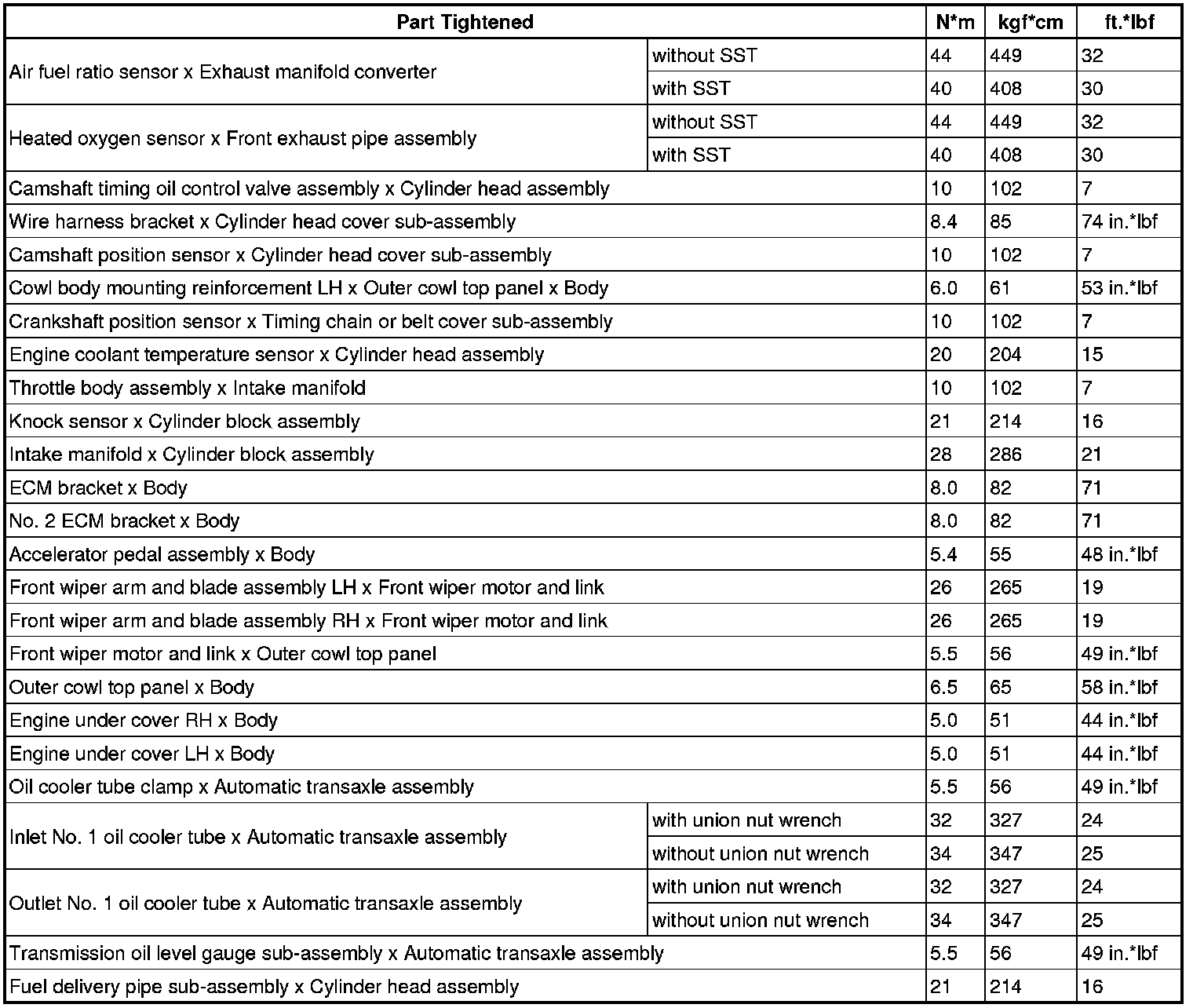

SERVICE SPECIFICATIONS: 2ZR-FE ENGINE CONTROL SYSTEM: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS
