Flywheel/Flexplate

Flywheel

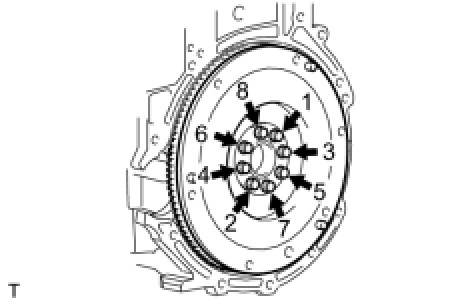

Install the flywheel with the 8 bolts in the order shown in the illustration.

Torque: 49 Nm (500 kgf-cm, 38 ft-lbf)

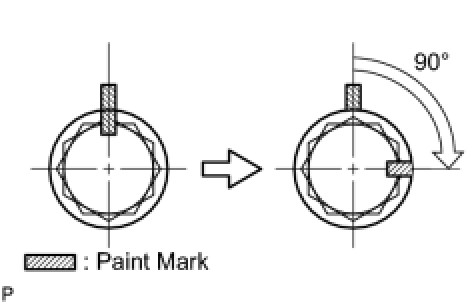

Mark paint marks on the upper edge of the bolt heads.
Tighten the bolts 90° in the sequence order shown in the illustration.

Drive Plate

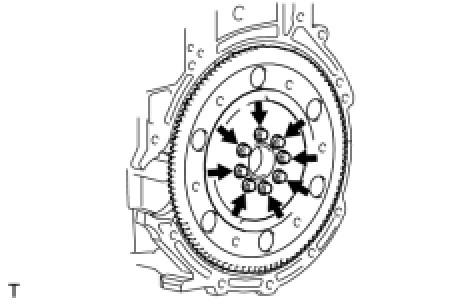

Install the front spacer, drive plate and rear spacer with the 8 bolts.
Uniformly tighten the 8 bolts.

Torque: 88 Nm (897 kgf-cm, 65 ft-lbf)
