Intake Manifold

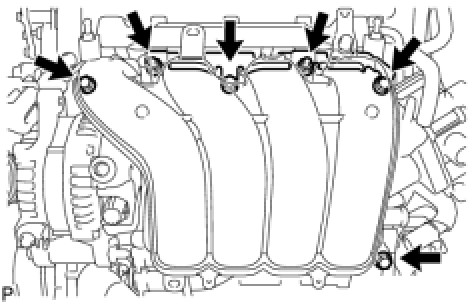

Provisionally tighten the intake manifold and manifold stay with the 4 bolts and 2 nuts in the order shown in the illustration, and then tighten them to the specified torque.

Torque: 28 Nm (286 kgf-cm, 21 ft-lbf)
