Oil Pump

Oil Pump Torque

INSTALL OIL PUMP ASSEMBLY

Install the oil pump assembly with the 3 bolts.





Torque: 21 Nm (214 kgf-cm, 16 ft-lbf)

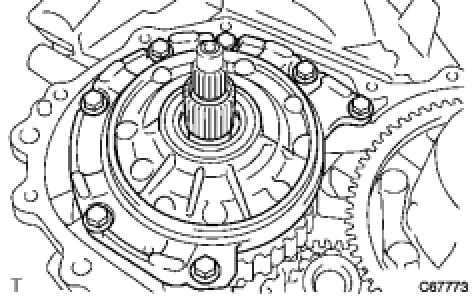

Install the oil pump with the 7 bolts.





Torque: 22 Nm (224 kgf-cm, 16 ft-lbf)
