Water Pump

Water Pump

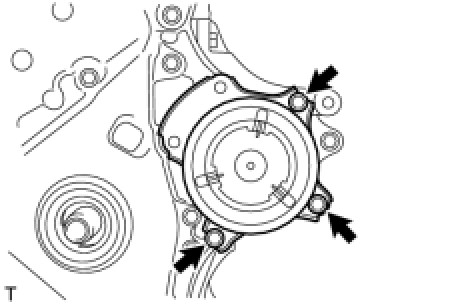

Install the water pump with the 3 bolts.





Torque: 24 Nm (245 kgf-cm, 18 ft-lbf)


Install the water pump assembly with the 5 bolts.





Torque: 26 Nm (260 kgf-cm, 19 ft-lbf) (for bolt A)
Torque: 24 Nm (240 kgf-cm, 17 ft-lbf) (for bolt B)
