TIMING CHAIN COVER

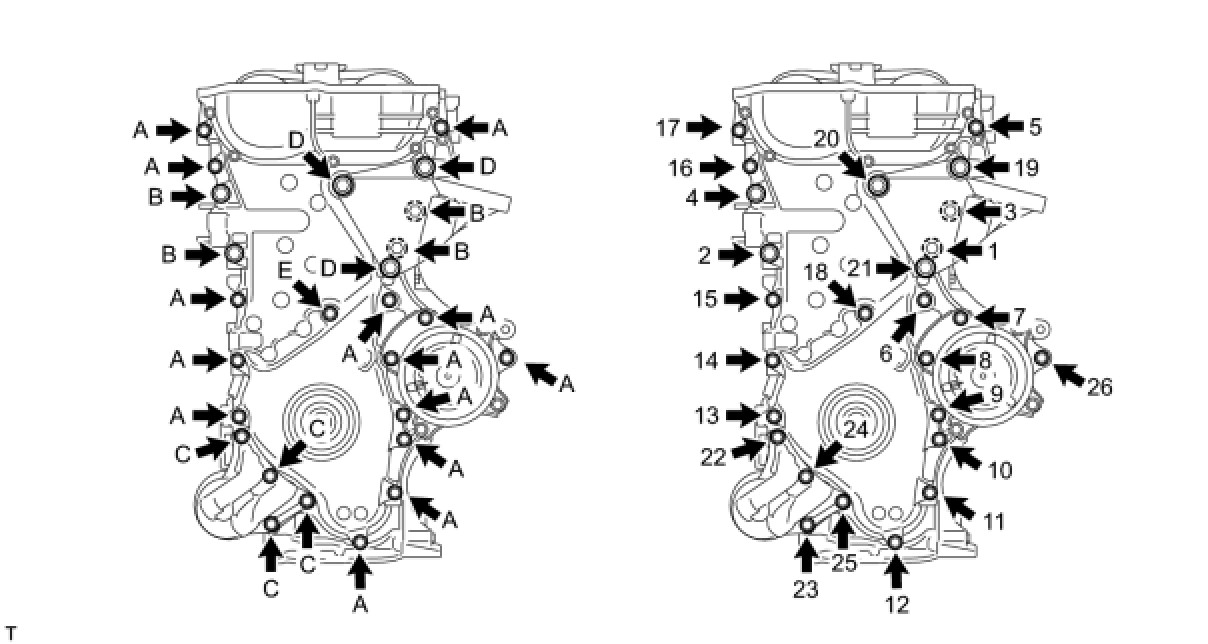

Install the timing chain cover with the 19 bolts as shown in the illustration.





Bolt A and C - Torque: 26 Nm (260 kgf-cm, 19 ft-lbf)
Bolt B and D - Torque: 51 Nm (520 kgf-cm, 38 ft-lbf)
Bolt E - Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

Bolt length:






CRANKSHAFT PULLEY

Torque: 190 Nm (1940 kgf-cm, 140 ft-lbf)

NO. 1 CHAIN TENSIONER

Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
