Cruise Control Main Switch: Inspection

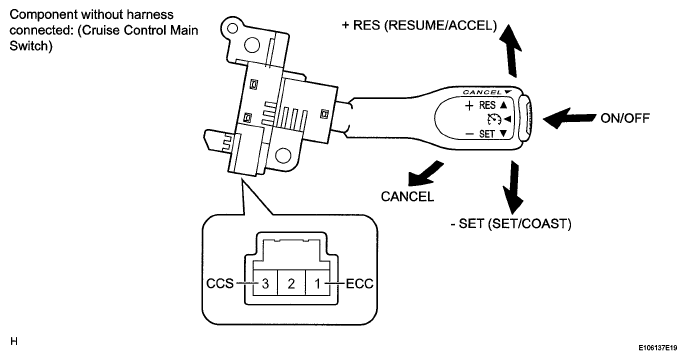

- INSPECT CRUISE CONTROL MAIN SWITCH
- Measure the resistance according to the value(s) in the table below.
Standard resistance
STANDARD RESISTANCE SPECIFICATIONSTester Connection Switch Condition Specified Condition 3 (CCS) - 1 (ECC) Neutral 10 kΩ or higher 3 (CCS) - 1 (ECC) + RES (RESUME/ACCEL) 216 to 264 Ω 3 (CCS) - 1 (ECC) - SET (SET/COAST) 567 to 693 Ω 3 (CCS) - 1 (ECC) CANCEL 1386 to 1694 Ω 3 (CCS) - 1 (ECC) Main Switch ON Below 1 Ω If the result is not as specified, replace the cruise control main switch.
