Front Axle Hub: Components

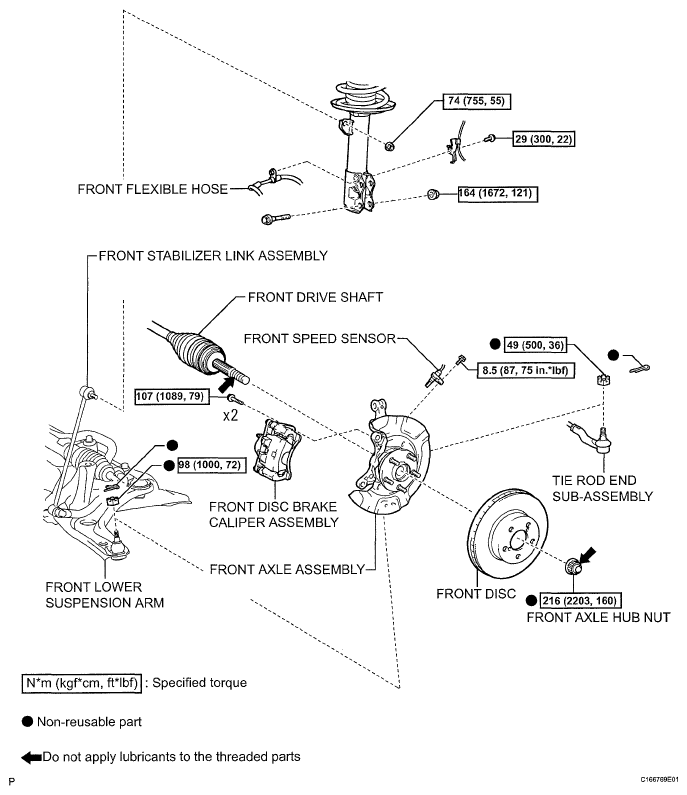

Fig 1: Front Axle Hub Replacement Components With Torque Specifications (1 Of 2)
G05400829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

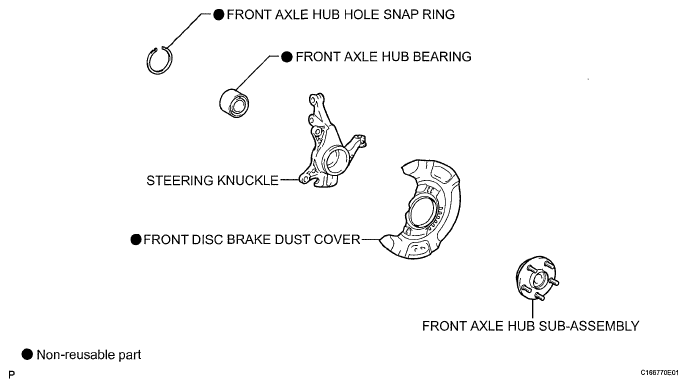

Fig 2: Identifying Front Axle Hub Components (2 Of 2)
G05400830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
